high-performance mist collector
GME-S750-eco
| Maximum air volume (m3 /min) | 15.8 |
|---|---|
| Collection efficiency (%) * | 99 |
| External Dimensions(mm) | H484×W408×D539 |
| Weight(kg) | about 24 |
* Weight method
Inquiry
Download
GME-S750-eco Product details
Specifications
| Maximum air volume (m3 /min) | 15.8 |
|---|---|
| Maximum static pressure (kPa) | 1.4 |
| Collection efficiency (%) *1 | 99 |
| Operating temperature and humidity | 0 to 50°C, 90% RH or less (indoor specification, no condensation) |
| Suction gas temperature (℃) | 0 to 50 |
| Collection target *2 | Water-insoluble oil mist (ignition point: 150℃ or higher) water-soluble oil mist |
| Max. inlet density( (mg/ m3) | 50 |
| External dimensions (mm) *3 | H484×W408×D539 |
| Suction port (mm) | Horizontal suction Φ123 |
| Weight(kg) | about 24 |
| Coating Color | Munsell N7, Munsell 5PB2/2 |
| rated voltage (V) *4 | Three-phase AC200-230 (50/60Hz) |
| current consumption (A) *5 | 4.2 |
| power consumption (W) *5 | 900 |
| Recommended breaker capacity (A) | 10 |
| Installed motor | Permanent magnet synchronous motor (for inverter drive only) |
| Installed motor output | 0.75kW 4P (totally closed fan type) |
| Fan Material | A5052 (aluminum), SPCC (iron) |
| drain pipe (mm) | Outer diameter φ25.4 (2 locations) |
| Noise (dB(A)) | 75 |
| Certification | CE/ETL |
*1 Measured according to the gravimetric method.
*2 If the product collects easily solidified (gelled) oil mist or oil mist that contains a large amount of swarf (generated in cutting and grinding of molds, etc.), more frequent maintenance may be required.
*3 Excluding protrusions.
*4 Connect the power supply using a circuit with a protection device for a machining tool or power supply equipment.
*5 This is a typical value when 200V

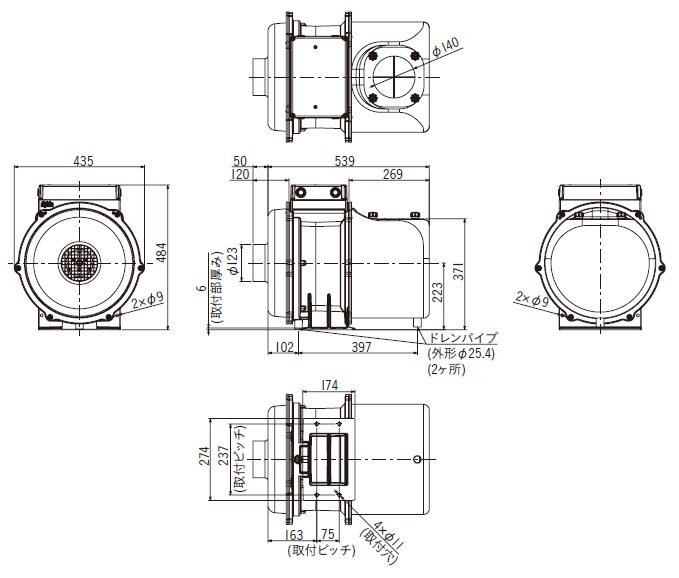

Dimensions

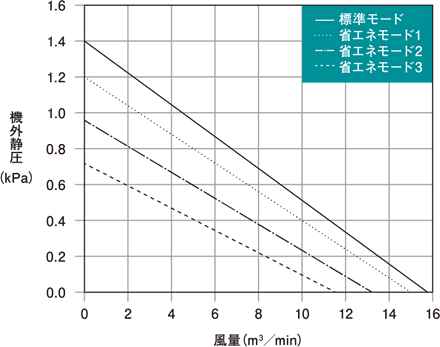

Capacity characteristics graph
