Overview/Features

Zero power consumption with drain water vaporization

HFC alternative non-drain
ENC-GR-LE-eco series

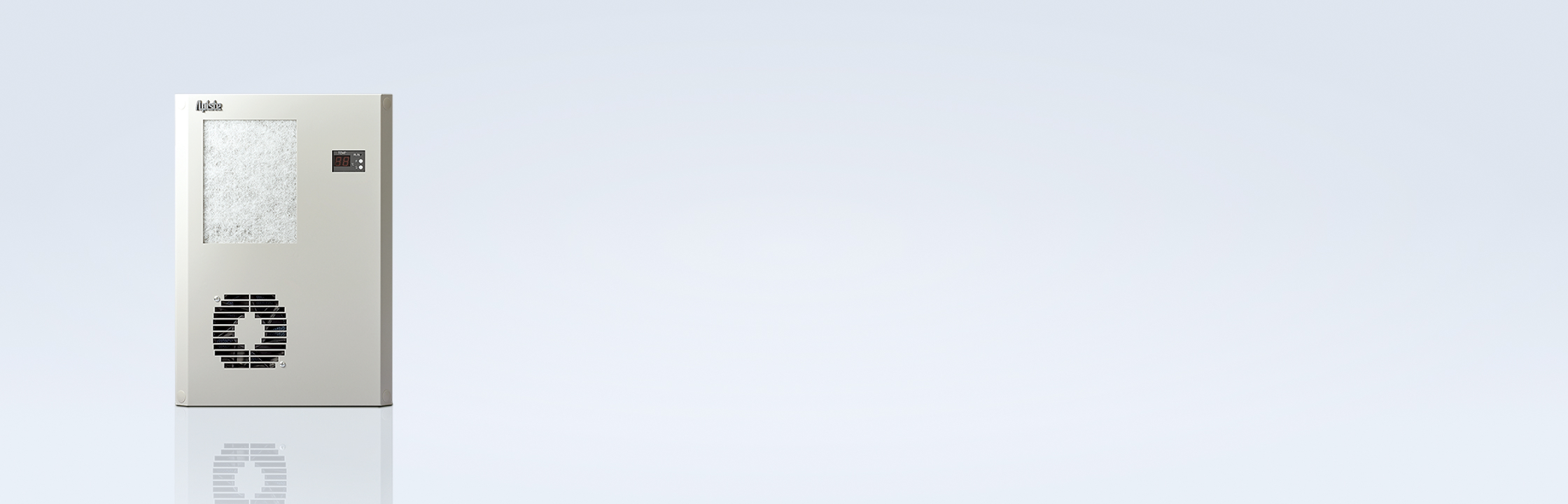

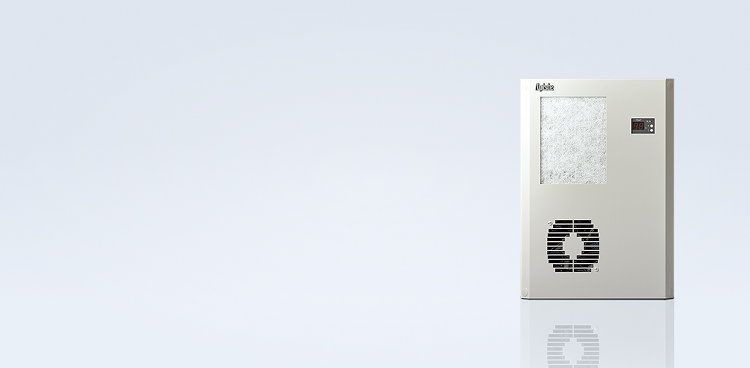

Non-freon, energy-saving control panel cooler with non-drain function

Zero energy consumption. Innovative energy-saving, non-drain evaporation filter system.

The Apiste lineup includes non-drain models that make it possible to use non-freon-gas energysaving control panel coolers in places where discarding drain water is a problem. Apiste non-drain models can perform even in hot and humid 35ºC, 85% humidity conditions. An innovative evaporation filter combining superior absorption and permeation temporarily collects drain water. Radiant heat from the cooler then evaporates the drain water without using any extra electricity.

> Please refer to the catalog for details.

Non-drain mechanism

Drain water extracted from moist air inside the control panel drips uniformly into the top of the evaporation filter and temporarily collects in the evaporation filter. Exposing the water to warm air that has passed through the condenser creates an energy-saving nondrain system.

> Please refer to the catalog for details.

The first in the industry to use UL standard compliant flame-retardant evaporization filter

A special absorbent filter with good water absorbency, ventilation and flame-retardancy is used for effective and safe processing of drain water.

> Please refer to the catalog for details.

HFC alternative non-drain

Mounting position

Model	Cooling capacity (W)	Rated Voltage (V)	External Dimensions (H×W×D) (mm)	Weight (kg)
ENC-GR310LE-eco Side mounting type	350	Single-phase, 100 to 120 VAC	H590×W200×D280	18	Product Catalog - Instruction manual
ENC-GR300LE-eco Side mounting type	350	Single-phase 200 to 240V AC	H590×W200×D280	18	Product Catalog - Instruction manual
ENC-GR510LE-eco Side mounting type	500	Single-phase, 100 to 120 VAC	H500×W350×D250	21	Product Catalog - Instruction manual
ENC-GR500LE-eco Side mounting type	500	Single-phase 200 to 240V AC	H500×W350×D250	21	Product Catalog - Instruction manual
ENC-GR810LE-eco Side mounting type	800	Single-phase, 100 to 120 VAC	H730×W300×D280	28	Product Catalog - Instruction manual
ENC-GR800LE-eco Side mounting type	800	Single-phase 200 to 240V AC	H730×W300×D280	28	Product Catalog - Instruction manual
ENC-GR1300LE-eco Side mounting type	1300	Single-phase 200 to 240V AC	H1000×W400×D270	38	Product Catalog - Instruction manual
ENC-GR2400LE-eco Side mounting type	2400	Single-phase 200 to 240V AC	H1200×W450×D250	47	Product Catalog - Instruction manual
