NRC-50AL
| Cooling capacity(W)*1 | 45 |
|---|---|
| Rated voltage(V) | single-phase AC100 to 240 |
| Mounting Type | Side-mounting |
| External Dimensions(mm) | H262×W234×D175 |
| Weight(kg) | 6.5 |
Inquiry
Download
NRC-50AL Product details
Specifications
| Mounting Type | Side-mounting |
|---|---|
| Cooling method | Peltier element electronic cooling system |
| Cooling capacity(W)*1 | 45 |
| Dehumidification capacity (g/h) | 38 (Normal mode) / 46 (dehumidification mode) |
| Ambient temperature(℃) | 10～45 |
| Ambient humidity(%RH) | 10～85 (No condensation) |
| External Dimensions(mm) | H262×W234×D175 |
| Weight(kg) | 6.5 |
| Coating Color | Nippon Paint Y22-85B Ivory equivalent color |
| Rated voltage(V) | single-phase AC100 to 240 |
| current consumption (A) | rating: 1.45 |
| Withstand voltage | 1000V for 1 minute (transformer capacity 500VA) |
| Vibration resistance | Frequency: 5Hz Total amplitude: 20mm |
| Radio wave regulations | VCCI (Class A compliant) |
| Dust and water proof protection rating | Equivalent to IP54 (internal circulation route) |
| Noise (dB(A)) | 56 |
| Display | power supply light (green) |
Note)
cooling capacity: Ambient temperature 25°C, heater balancing method in a measurement booth measuring H500 x W300 x D500.
current consumption and power consumption: Values when the ambient temperature is 25°C, the ambient humidity is 40%, the temperature inside the panel is 25°C, and the voltage is 100V.
Allowable ambient temperature: When the ambient temperature is below 10°C, there is a risk of freezing during no-load operation.
Dehumidification capacity: capacity at ambient temperature of 30°C and humidity of 80%.
Included parts list
| Mounting bolt | 4 pieces (M5 x L20) |
|---|---|
| drain hose | 0.5m |
| Insulok tie | 1 piece |
| Spacer | 4 pieces |
| Instruction manual | 1 book |

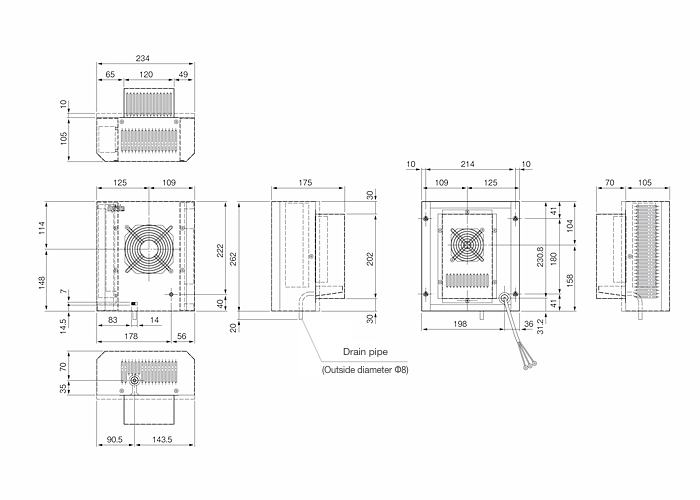

External dimensions
(1) power supply line: External cord length 2m

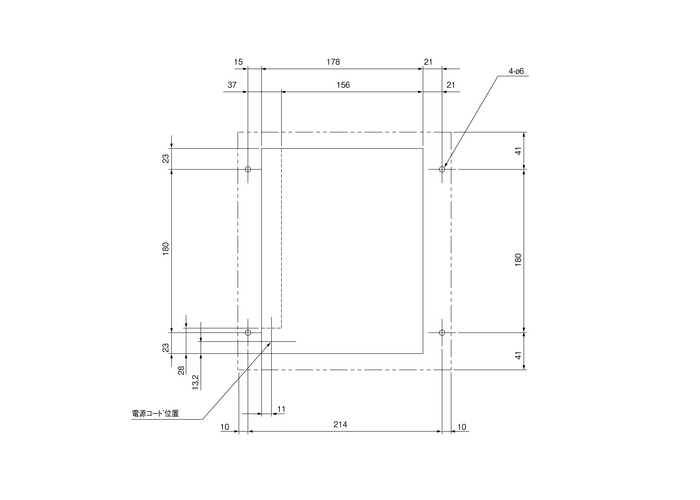

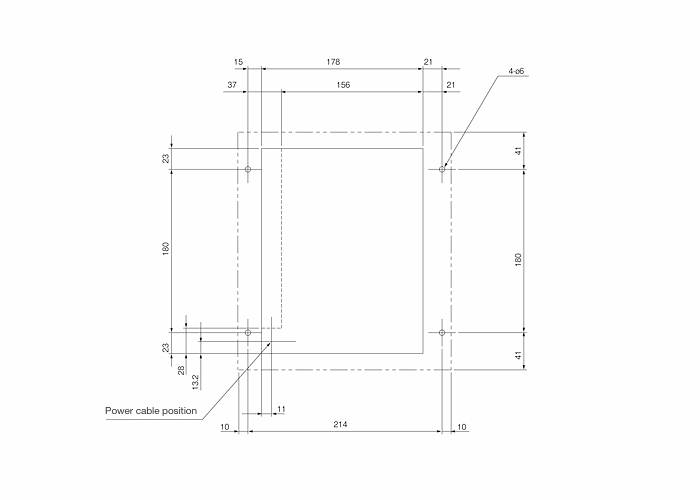

Installation drawing (standard panel cut)
*Diagram viewed from outside panel.
*Please maintain the thread pitch when processing.

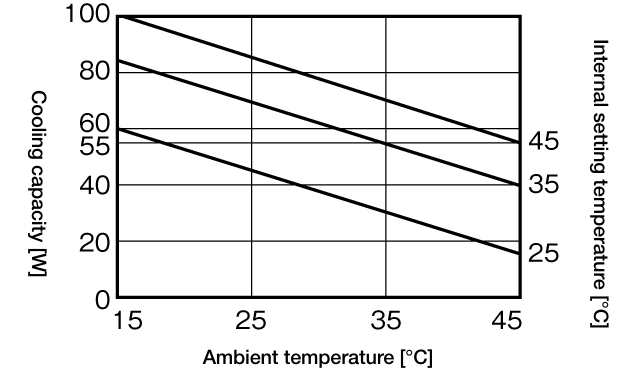

Capacity characteristic chart
cooling capacity measurement conditions: Heater balance method.
○Please read the instruction manual before use and use it correctly.
○Products will be delivered to the vehicle (designated domestic locations, excluding remote islands).
○Depending on model and number of units, a charter flight may be required (additional costs may apply).
For overseas deliveries, we recommend separate overseas packaging.
Using the product outside rating power supply range may cause it to malfunction.
