Oil chiller VSC-N3200
Oil chiller
Non-freon air-cooled oil chillers
VSC-N3200
series
Demonstrates its durability and cooling capacity in a harsh workplace environment.
| Use Area Temperature(℃) | 5～45 |
|---|---|
| Cooling capability(W) | 2650/3050 |
| Power-supply voltage(V) | Three-phase AC200 |
| External dimensions(mm) | H755×W400×D450 |
| Weight(kg) | 58 |
Product Details for VSC-N3200
Specifications
| Cooling method | Air-cooled type |
|---|---|
| Cooling capacity(W) | 2650/3050 |
| Usable Oil | Lubricating oil, petroleum hydraulic oil |
| Setting criteria / tuned type | Room temperature, unit temperature |
| Control target / tuned type | Outlet opening oil temperature |
| Temperature control range / tuned type(℃) | Within -9.9 to +9.9 of the set standard temperature |
| Control target / fixed type | Outlet opening oil temperature |
| Temperature control range / fixed type(℃) | 5～45 |
| Temperature control accuracy (°C) | ±0.1 |
| Oil viscosity (mm2/s) | 1.4～200（ISO VG2～68） |
| Use Area Temperature(℃) | 5～45 |
| Power-supply voltage(V) | Three-phase AC200 |
| Power-supply voltage(V) | 3.7/3.9 |
| Consumption current(W) | 806/1030 |
| External dimensions(mm) | H755×W400×D450 |
| Weight(kg) | 58 |
| Coating Color | Munsell N7 |
| Pipe connection / Oil outlet | Rc3/4 |
| Pipe connection / Oil intlet | Rc3/4 |
| Pump / rated output(W) | 400 |
| Pump / Discharge rate(ℓ/min) | 24/28.8 |
| Relief valve pressure setting (MPa) | 0.6 |
| Refrigerant / Type | R1234yf |
| Refrigerant / Fill ration(g) | 600 |
| Noise (dB (A)) | 70 |
| Safety circuit / Compressor | Thermal protector, electromagnetic switch |
| Safety circuit / Cooling cycle | Pressure switch |
| Safety circuit / Pump | Electromagnetic switch, relief valve |
| Input/output / Alarm output | Non-voltage, normally open or normal close can be selected |
| Input/output / Run/stop input | Non-voltage normally open |
*Cooling capacity, current consumption, and power consumption values are based on a 35ºC room temperature and 35ºC oil temperature (ISO VG5).
*Do not use machining fluids, grinding fluids, water and water soluble liquids, pharmaceutical and food product liquids, gasoline, kerosene, thinner and other highly volatile, low-lubricant fluids, or flame-retardant hydraulic oil.
Temperature control precision is based on the temperature gage reading under constant load.
* Maintain power supply voltage within ±10% of rated voltage.

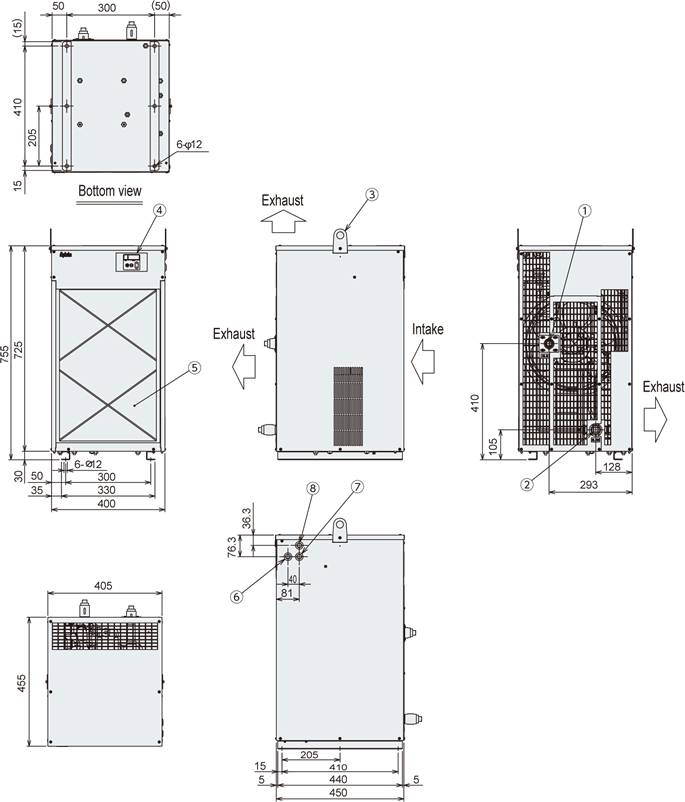

External dimensions
① Oil Inlet Rc3/4
② Oil Outlet Rc3/4
③ Hanging bracket
④ Control Panel
⑤ Filter
⑥ External input/output wiring opening Φ22
⑦ Power source wiring opening Φ22
⑧ External temperature thermistor wiring opening Φ22

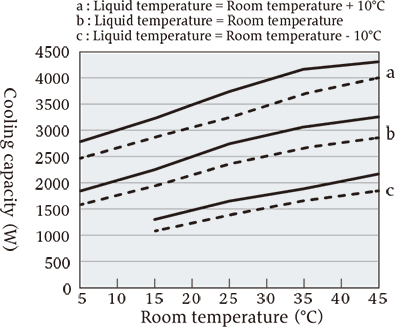

Capacity characteristic
Oil used: ISO VG5
*Cooling performance may vary depending on room temperature, liquid temperature, oil viscosity, and other conditions.
Please use it properly Read the manual before using Delivery of the items will be passed on the car.
(Domestic location specified, except islands) will be (additional cost) Charter flights handled separately by the number, type .
Overseas at the time of delivery, we recommend packing for overseas separately.
After verifying the specifications, insert an appropriate breaker (circuit breaker for wiring) between the product and power supply.
Cause of failure and be used at the rated power supply out of range.
Please use the service and maintenance on a regular basis.
Failure to maintain regular maintenance, you may be a factor in product performance degradation trouble.
When disposing of this product, you should comply with various laws and regulations, please go to the appropriate.
