Temperature and humidity control type
PAU-GR1800SE-HC
| Air outlet volume(m3 /min) | 5（ノーマルモード） |
|---|---|
| Cooling capacity(W)*1 | 1675（2000） |
| Thermal capacity(W) | 1235 |
| Rated voltage(V) | Single-phase 200 to 240V AC |
| Control models | Temperature and humidity control type |
| External Dimensions(mm) | H1050×W400×D715 |
| Weight(kg) | 100 |
Inquiry
Download
PAU-GR1800SE-HC Product details
Specifications
| Cooling method | Air-cooling type |
|---|---|
| Control models | Temperature and humidity control type |
| Cooling capacity(W)*1 | 1675（2000） |
| Heating capacity(W)*2 | 1235 |
| Humidification capacity (g/kg(DA)) *3 | 5.53 |
| Dehumidification capacity (g/kg (DA)) *4 | 7.45 |
| Temperature control stability (℃) *5 | ±0.1 |
| Temperature control range (℃) *6 | 20 to 30 |
| Humidity control stability (%RH) *5 | ±1.0 |
| Humidity control range (%RH) *6 | 35～75 |
| Temperature setting range (℃) *7 | 0 to 50 |
| Humidity setting range (%) *7 | 0～99.99 |
| Ambient temperature(℃) | 20 to 35 (Temperature change gradient: Within 1℃/1h) |
| Ambient humidity(%RH) | 15 to 85 (Humidity change gradient: within 5%RH/1h) (No condensation) |
| Main unit airflow volume (m 3 /min) *8 | 5（ノーマルモード／省エネモード時） 3.3（ドライモード時） |
| External dimensions (mm) *9 | H1050×W400×D715 |
| Weight(kg) | 100 |
| Coating Color | Munsell N-87 Equivalent color of gray |
| Blower duct connection diameter(mm) | φ100 |
| rated voltage (V) *10 | Single-phase 200 to 240V AC |
| current consumption (A) *11 | 5.8 (rating) / 7.1 (MAX) |
| power consumption (W) *11 | 955 (rating) / 1180 (MAX) |
| Humidifier/Water supply pressure (MPa) | 0.2～1.0 |
| Humidifier/water supply temperature (℃) | (OA-10℃)～50 |
| Humidifier/water supply diameter | 15A (Rc1/2) |
| Drain connection diameter | 20A (Rc3/4) x 2P |
| Frame drainage diameter | 15A (Rc1/2) |
| Refrigerant(g) | R1234yf 400g |
| Exhaust air volume (m 3 /min) *12 | 8.4 |
| noise (dB(A)) *13 | 68 |
| Protective functions/Main circuit | Earth leakage breaker (15A, 30mA), voltage abnormality detection |
| Protective functions/Fan | Abnormal RPM detection, Residual operation after stop |
| Protective functions/Compressor *9 | Inverter power release, high pressure side high temperature abnormality protection, cooler anti-freeze function, compressor rotation speed abnormality detection |
| Input/output/main unit abnormal output | No voltage (AC250V/2A/resistive load) *Selectable between a contact or b contact |
| Input/Output/Control Caution Output | No voltage (AC250V/2A/resistive load) *Selectable between a contact or b contact |
| Input/Output/Operation Output | No voltage (AC250V/2A/resistive load) *Selectable between a contact or b contact |
| Input/output/operation stop input | No-voltage input (control board connector) |
| Input/output/Ethernet/Communication standard | 10BASE-T/100BASE-TX |
| Input/Output/Ethernet/Communication protocol | Modbus/TCP |
| Display/operation method | Monochrome LCD, key input |
| Functions | Operation mode switching, Air flow adjustment, Equipment operation status display, Error log display, Temperature/humidity upper/lower limit alarm setting, Key lock, Freezing prevention operation |
*1 cooling capacity is measured at 4m from the duct when the ambient temperature and humidity is 25℃/50%RH.
cooling capacity in parentheses is the value at 4m from the duct when the ambient temperature and humidity is 30℃/70%RH.
*2 Heating capacity is measured at an ambient temperature and humidity of 25°C/50%RH, 4m away from the duct.
*3 Humidification capacity is measured at an ambient temperature and humidity of 25°C/50%RH, 4m away from the duct.
*4 Dehumidification capacity is measured in dry mode at an ambient temperature and humidity of 30°C/70% RH, 4m away from the duct.
*5 Temperature control stability is based on the method specified in JTMK01 Constant Temperature and Humidity Chamber -performance Test Method and performance display Method (Japan Testing Machinery Manufacturers' Association).
stability is guaranteed for one point at the main body outlet using the temperature controller reading on the air conditioner, and thermal interference from ducts, etc. is not covered by stability guarantee.
In addition, this product is intended to suppress fluctuations in air temperature and does not guarantee absolute temperature values.
(A bias function for correction is provided.)
*6 Depending on the ambient temperature and humidity, control may not be possible even within the control range.
*7 Depending on the usage environment, control with the set value may not be possible.
*8 If the pressure loss is large due to a long duct, etc., use an auxiliary fan to ensure sufficient airflow at the end of the duct.
*9 Dimensions excluding the protrusions of control panel, the outlet flange, the casters and their mounting parts.
*10 Please use power-supply voltage within ±10% of rated voltage.
*11 current consumption and power consumption will vary depending on ambient environment temperature and humidity and conditions of use.
*12 As this is an air-cooled type, heat is exhausted from the equipment. (An exhaust chamber is available as option.)
*13 Value measured 1m in front.
- Before actually installing the product, please check specification and precautions in the instruction manual.
- Use power-supply voltage within ±10% of rated voltage.
・Please note that product specification may change without notice.

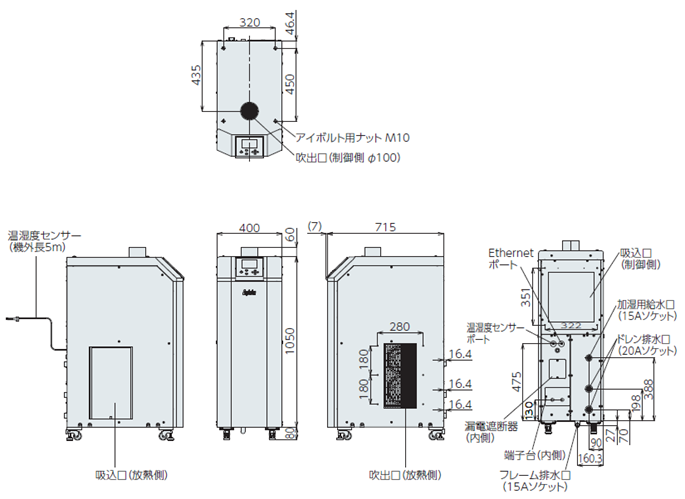

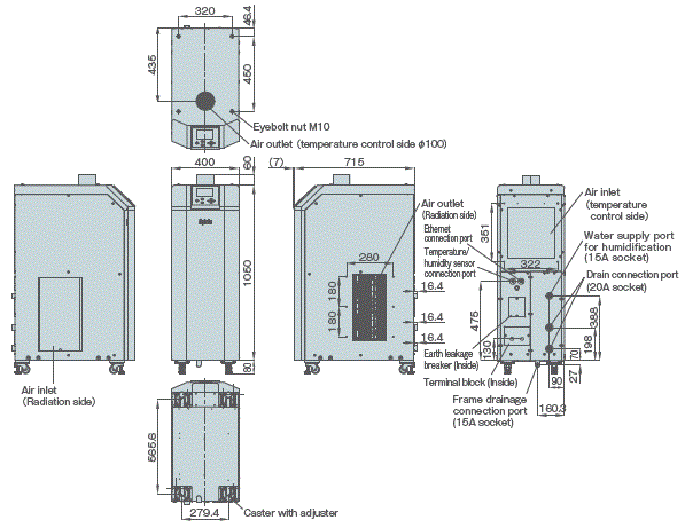

External dimensions

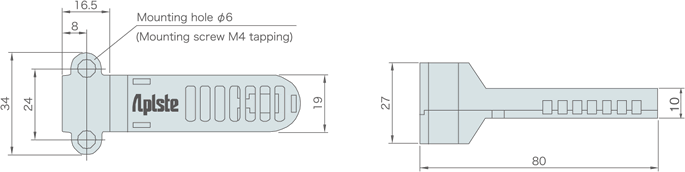

Temperature and humidity sensor dimensions
Note
◯Please read the instruction manual before use and use it correctly.
◯Products will be delivered to the vehicle (designated domestic locations, excluding remote islands).
◯ Depending on model and number of vehicles, a charter flight may be required (additional costs may apply).
◯For overseas delivery, we recommend separate overseas packaging.
○If you would like to arrange for a meeting to be held, please contact us separately.
◯Please check specification and install an appropriate circuit breaker (wiring circuit breaker) between this product and power supply.
◯Using the product outside rating power supply range may cause it to malfunction.
Please perform regular maintenance.
◯Failure to perform regular maintenance may result in deterioration of product performance or problems.
When disposal of this product, please comply with all applicable laws and regulations and dispose of it appropriately.
