Temperature and humidity control type
PAU-GR8000SE-HC
| Air outlet volume(m3 /min) | 30 (Normal mode) |
|---|---|
| Cooling capacity(W)*1 | 8000（9600） |
| Thermal capacity(W) | 11000（4100） |
| Rated voltage(V) | Three phase AC200~240 |
| Control models | Temperature and humidity control type |
| External Dimensions(mm) | H1654×W650×D1150 |
| Weight(kg) | 240 |
Inquiry
Download
PAU-GR8000SE-HC Product details
Specifications
| Cooling method | Air-cooling type |
|---|---|
| Control models | Temperature and humidity control type |
| Cooling capacity(W)*1 | 8000（9600） |
| Heating capacity(W)*2 | 11000（4100） |
| Humidification capacity (g/kg(DA)) *3 | 4.9 |
| Dehumidification capacity (g/kg (DA)) *4 | 13.0 (Achieved dew point temperature: 3.5℃ DP or less) |
| Temperature control stability (℃) *5 | ±0.1 |
| Temperature control range (℃) *6 | 20 to 30 |
| Humidity control stability (%RH) *5 | ±0.5 |
| Humidity control range (%RH) *6 | 35～75 |
| Temperature setting range (℃) *7 | 0 to 50 |
| Humidity setting range (%) *7 | 0～99.99 |
| Ambient temperature(℃) | 15 to 35 (Temperature change gradient: within 1°C/1h) |
| Ambient humidity(%RH) | 15 to 85 (humidity change gradient: within 5% RH/1h) (no condensation) |
| Main unit airflow volume (m 3 /min) *8 | 30（ノーマルモード／省エネモード時） 6（ドライモード時） |
| External dimensions (mm) *9 | H1654×W650×D1150 |
| Weight(kg) | 240 |
| Coating Color | Munsell N-87 Equivalent color of gray |
| Blower duct connection diameter(mm) | φ250 |
| rated voltage (V) *10 | Three phase AC200~240 |
| current consumption (A) *11 | 13.0 (rating) / 18.4 (MAX) |
| power consumption (W) *11 | 4040 (rating) / 5950 (MAX) |
| Humidifier/Water supply pressure (MPa) | 0.2～1.0 |
| Humidifier/water supply temperature (℃) | (OA-10℃)～50 |
| Humidifier/water supply diameter | 8A (Rc1/4) |
| Drain connection diameter | 20A (Rc3/4) x 2P |
| Frame drainage diameter | 15A (Rc1/2) |
| Refrigerant(g) | R1234yf 3500g |
| Exhaust air volume (m 3 /min) *12 | 29.2 |
| noise (dB(A)) *13 | 69 |
| Protective functions/Main circuit | Earth leakage breaker (30A, 30mA), voltage abnormality detection |
| Protective functions/Fan | Abnormal RPM detection, Residual operation after stop |
| Protective functions/Compressor *9 | Inverter protection function, cooler anti-freeze function, high pressure side high temperature abnormality, high pressure/low pressure abnormality |
| Input/output/main unit abnormal output | No voltage (AC250V/2A/resistive load) *Selectable between a contact or b contact |
| Input/Output/Control Caution Output | No voltage (AC250V/2A/resistive load) *Selectable between a contact or b contact |
| Input/Output/Operation Output | No voltage (AC250V/2A/resistive load) *Selectable between a contact or b contact |
| Input/output/operation stop input | No-voltage input (rear terminal block) |
| Input/output/Ethernet/Communication standard | 10BASE-T/100BASE-TX |
| Input/Output/Ethernet/Communication protocol | Modbus/TCP |
| Display/operation method | Monochrome LCD, key input |
| Functions | Operation mode switching, Air flow adjustment, Equipment operation status display, Error log display, Temperature/humidity upper/lower limit alarm setting, Key lock, Freezing prevention operation |
*1 cooling capacity is measured at 4m from the duct when the ambient temperature and humidity is 25℃/50%RH.
cooling capacity in parentheses is the value at 4m from the duct when the ambient temperature and humidity is 30℃/70%RH.
*2 Heating capacity is measured at 4m from the duct when the ambient temperature and humidity is 25℃/50%RH and the unit is operating in normal/energy-saving mode.
The heating capacity in parentheses is the value at 4m from the duct when operating in dry mode with an ambient temperature and humidity of 25℃/50%RH.
*3 Humidification capacity is measured at an ambient temperature and humidity of 25°C/50%RH, 4m away from the duct.
*4 Values below 3.5°C DP are for dry mode operation at an ambient temperature and humidity of 27°C/70% RH or 30°C/55% RH.
*5 Temperature and humidity control stability is based on the method specified in JTMK01 Constant Temperature and Humidity Chamber -performance Test Method and performance display Method (Japan Testing Machinery Manufacturers' Association).
stability is guaranteed for one point at the main unit's air outlet using the temperature controller reading on the air conditioner, and thermal interference from ducts, etc. is not covered by stability guarantee.
In addition, this product is intended to suppress fluctuations in air temperature and does not guarantee absolute temperature values.
(A bias function for correction is provided.)
*6 Depending on the ambient temperature and humidity, control may not be possible even within the control range.
*7 Depending on the usage environment, control may not be possible with the set value.
*8 If the pressure loss is large due to a long duct, etc., use an auxiliary fan to ensure sufficient airflow at the end of the duct.
*9 Dimensions excluding the protrusions of control panel, the air outlet flange, the casters and their mounting parts.
*10 Please use power-supply voltage within ±10% of rated voltage.
*11 current consumption and power consumption will vary depending on ambient environment temperature and humidity and conditions of use.
*12 As this is an air-cooled type, heat is exhausted from the equipment. (An exhaust chamber is available as option.)
*13 Value measured 1m in front.
- Before actually installing the product, please check specification and precautions in the instruction manual.
・Please note that product specification may change without notice.

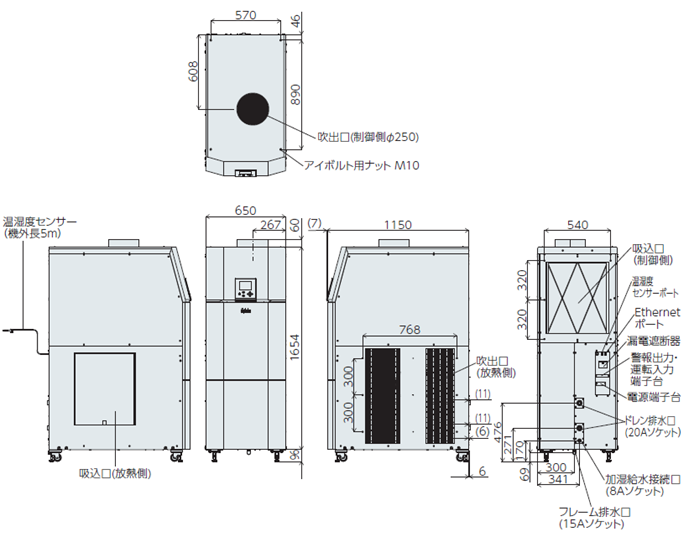

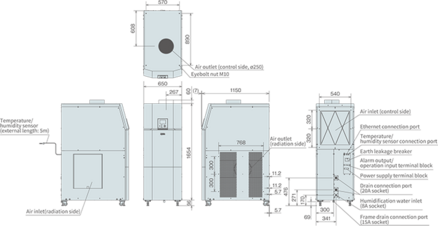

External dimensions

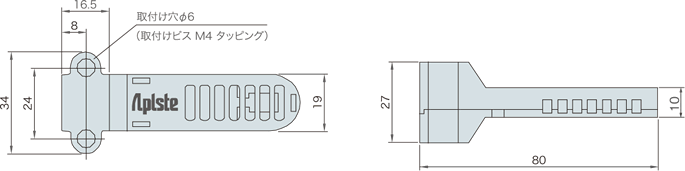

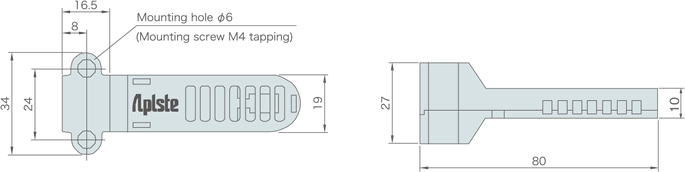

Temperature and humidity sensor dimensions
