Temperature and humidity control (dehumidification) type
PAU-AZ2000SE-DR
| Processing air volume (m 3 /min) | 5.0/6.0 |
|---|---|
| Cooling capacity(W)*1 | 4200／4800 |
| Thermal capacity(W) | 7200／7800 |
| Rated voltage(V) | Three-phase 200V AC |
| Control models | Temperature and humidity control (dehumidification) type |
| External Dimensions(mm) | H1631×W650×D800 |
| Weight(kg) | 220 |
PAU-AZ2000SE-DR Product details
Specifications
| Cooling system | Air-cooling type |
|---|---|
| Control models | Temperature and humidity control (dehumidification) type |
| Cooling capacity(W)*1 | 4200／4800 |
| Heating capacity (W) *1 | 7200／7800 |
| Temperature control stability (℃) *2 | ±0.1 |
| Temperature control range (℃) *3 | 20 to 30 |
| Humidity control stability (%RH) *2 | ±0.5 |
| Humidity control range (%RH) *4 | DP4.5℃~OA below |
| Temperature setting range (℃) *5 | 8～50 |
| Humidity setting range (%) *5 | 0～70 |
| Ambient temperature(℃) | 15 to 35 (Temperature change gradient: within 1°C/1h) |
| Ambient humidity(%RH) | 15 to 85 (Humidity change gradient: within 5%RH/1h) (No condensation) |
| Maximum main body airflow volume (m 3 /min) *6 | 5.0/6.0 |
| External dimensions (mm) *7 | H1631×W650×D800 |
| Weight(kg) | 220 |
| Coating Color | Ivory (Nippon Paint: Y22-85B semi-gloss) |
| Blower duct connection diameter(mm) | φ200 (with damper) |
| rated voltage (V) *8 | Three-phase 200V AC |
| current consumption (A) *9 | 12.0/12.0 (rating) 13.0/14.0 (MAX) |
| power consumption (W) *9 | 3300/3900 (rating) 3700/4600 (MAX) |
| Drain connection diameter | 20A female socket (Rp: 3/4 inch) |
| Frame drainage diameter | 15A female socket (Rc: 1/2 inch) |
| Refrigerant(g) | R407C 1500g |
| Exhaust air volume (m 3 /min) *10 | 33.4／39.2 |
| noise (dB(A)) *11 | 68/72 |
| Protective functions/Main circuit | Earth leakage breaker (20A 30mA), reverse phase protection |
| Protective functions/Fan | Overcurrent relay, delay timer (3 minutes), surge absorber |
| protection function/Compressor | Cooler freeze protection, overcurrent relay, motor protector, surge absorber, high and low abnormal pressure protection, cooler heating control function |
| Input/output/main unit abnormal output | NC contact, no voltage (AC250V/2A/resistive load) |
| Input/Output/Control Caution Output | NC contact, no voltage (AC250V/2A/resistive load) |
| Input/output/operation stop input | PCB Connector |
| Display/operation method | 7-segment LED, key input |
| Functions | Error history display function, temperature and humidity upper and lower limit alarm setting function, key lock function, anti-freeze operation function |
*1 Values measured 4m from the duct when the ambient temperature and humidity is 27°C/70%RH.
*2 Temperature control stability is based on the method specified in JTMK01 Constant Temperature and Humidity Chamber -performance Test Method and performance display Method (Japan Testing Machinery Manufacturers' Association).
stability is guaranteed for one point at the main body outlet using the temperature controller reading on the air conditioner, and thermal interference from ducts, etc. is not covered by stability guarantee.
In addition, this product is intended to suppress fluctuations in air temperature and does not guarantee absolute temperature values.
(A bias function for correction is provided.)
*3 Depending on the ambient temperature and humidity, control may not be possible even within the control range.
*4 Always set the humidity lower than the ambient humidity.
Also, depending on the ambient temperature and humidity, it may not be possible to control the temperature and humidity even if they are within the control range.
The upper limit of the dehumidification range is the value obtained by subtracting the minimum dehumidification capacity of the unit from the intake air. Please contact us separately for minimum dehumidification capacity.
*5 Depending on the usage environment, control may not be possible with the set value.
*6 If the pressure loss is large due to a long duct, etc., use an auxiliary fan to ensure sufficient airflow at the end of the duct.
*7 The above dimensions include the casters and do not include the mounting flanges or protrusions.
*8 Please use power-supply voltage within ±10% of rated voltage.
*9 current consumption and power consumption will vary depending on ambient environment temperature and humidity and conditions of use.
*10 As this is an air-cooled type, heat is exhausted from the equipment. (An exhaust chamber is available as option.)
*11 Value measured 1m in front.
- Before actually installing the product, please check specification and precautions in the instruction manual.

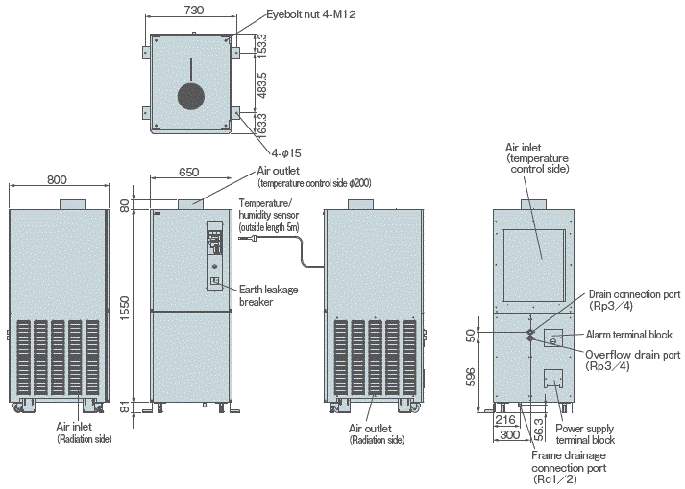

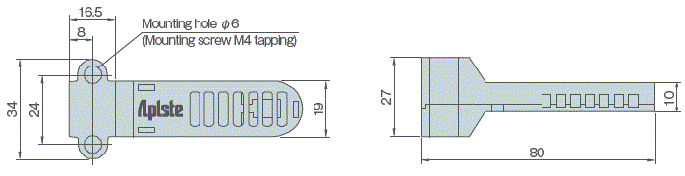

External dimensions
Note
◯Please read the instruction manual before use and use it correctly.
◯Products will be delivered to the vehicle (designated domestic locations, excluding remote islands).
◯ Depending on model and number of vehicles, a charter flight may be required (additional costs may apply).
◯For overseas delivery, we recommend separate overseas packaging.
○If you would like to arrange for a meeting to be held, please contact us separately.
◯Please check specification and install an appropriate circuit breaker (wiring circuit breaker) between this product and power supply.
◯Using the product outside rating power supply range may cause it to malfunction.
Please perform regular maintenance.
◯Failure to perform regular maintenance may result in deterioration of product performance or problems.
When disposal of this product, please comply with all applicable laws and regulations and dispose of it appropriately.
