Precision air conditioners (TCU/ECU) PAU-01FFU

Precision air conditioners (TCU/ECU)
Clean fan filter unit

PAU-01FFU

PAU Series

Precision air conditioners (TCU/ECU) Clean fan filter unit PAU-01FFU

A clean local space is achieved.

Air flow(m3/min) About 0.8/0.9 or more
Rated voltage(V) Single-phase, 100 VAC
External Dimensions(mm) H155×W265×D265

Product Details for PAU-01FFU

Specifications

Processed air volume(m3/min)* About 0.8/0.9 or more
Dust collection efficiency 99.97% or more for 0.3 μm particles
HEPA filter Dimensions(H×W×D)(mm) H203×W203×D68
Number of fan motors used 1
Construction Body: Steel plate baking finish
External Dimensions(mm) H155×W265×D265
Rated voltage(V) Single-phase, 100 VAC
Power consumption(W) 20/20(50/60Hz)
Humidifier / Water supply pressure(MPa) Normal open/no-voltage (100 to 240 VAC/1 A/resistive load)

Note) Average value with no load. (50/60Hz)

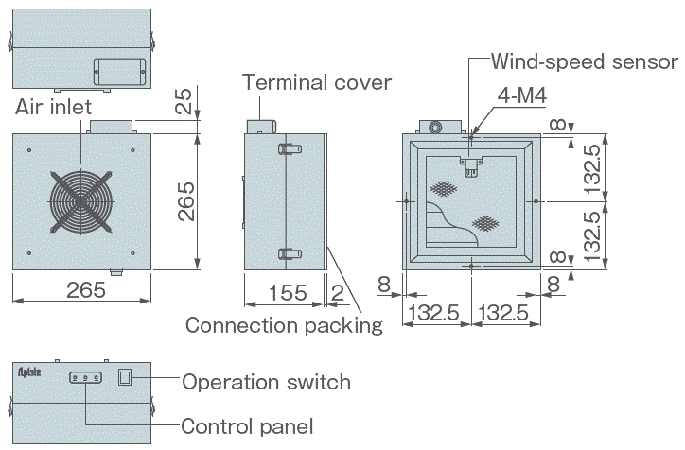

External dimensions

PAU-01FFU External dimensions

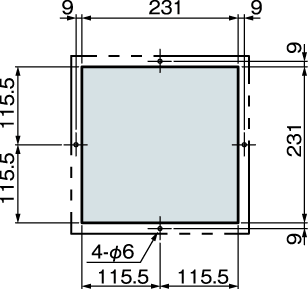

Panel cut dimensions

PAU-01FFU Panel cut dimensions

[Caution]
When mounting this device on a ceiling, make sure the booth has sufficient strength. We recommend that you use an Apiste’s original custom booth.
Air conditioning control can be carried out by using this device in combination with a PAU precision air conditioner. For more information, please contact our sales representative.
The processed air flow is the average air flow from the filter surface.
