Precision air conditioners (TCU/ECU) PAU-A14FFU-ULPA
Precision air conditioners (TCU/ECU)
Clean fan filter unit
PAU-A14FFU-ULPA
PAU Series
A clean local space is achieved.
| Air flow(m3/min) | 12 or more |
|---|---|
| Rated voltage(V) | Three-phase, 200 VAC |
| External Dimensions(mm) | H320×W700×D700 |
Product Details for PAU-A14FFU-ULPA
index
Specifications
| Processed air volume(m3/min)* | 12 or more |
|---|---|
| Dust collection efficiency | 99.999% or more for 0.1 μm particles |
| HEPA filter Dimensions(H×W×D)(mm) | H52×W610×D610 |
| Number of fan motors used | 1 |
| Construction | Body: Steel plate baking finish |

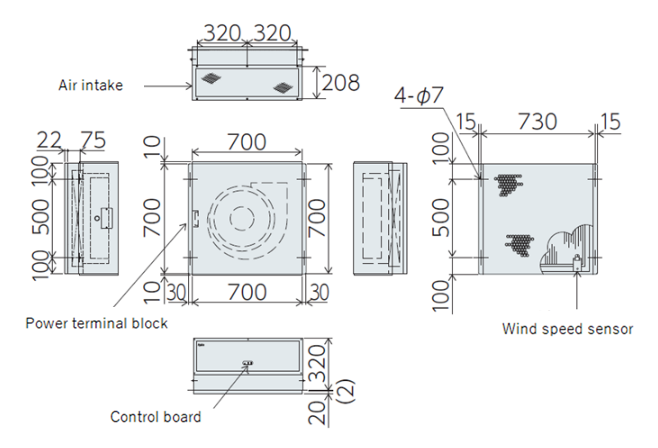

| External Dimensions(mm) | H320×W700×D700 |
| Rated voltage(V) | Three-phase, 200 VAC |
| Power consumption(W) | 240/250(50/60Hz) |
| Humidifier / Water supply pressure(MPa) | Normal open/no-voltage (100 to 240 VAC/1 A/resistive load) Factory setting 0.2 m/s |
Note) Average value with no load. （50Hz）
*Contact us separately for the SUS, power and other specifications.
*Models with ULPA specifications are made upon order. Inquire separately about the delivery lead time.
[Caution]

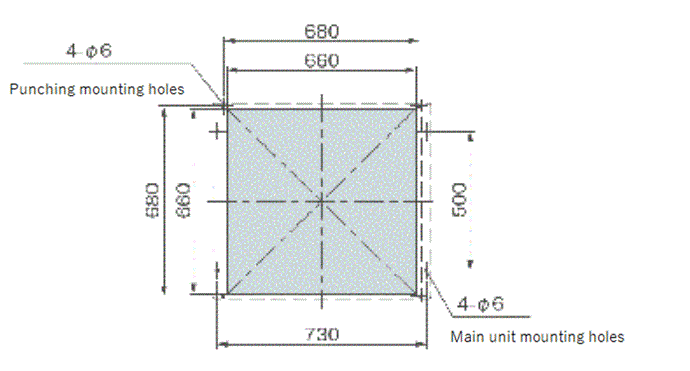

When mounting this device on a ceiling, make sure the booth has sufficient strength. We recommend that you use an Apiste’s original custom booth.
Air conditioning control can be carried out by using this device in combination with a PAU precision air conditioner. For more information, please contact our sales representative.
The processed air flow is the average air flow from the filter surface.
