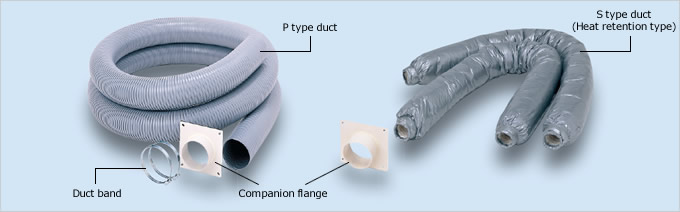

Duct mounting related parts
Duct mounting related parts
Specifications
| PAU-GR300SE PAU-GR800SE PAU-GR800SE-HC PAU-300S PAU-AR800S PAU-A920S-HC |
PAU-GR1800SE PAU-GR1800SE-HC PAU-A1400S-HC PAU-AZ1800SE |
PAU-AZ3000SE PAU-GR3000SE PAU-GR3000SE-HC |
PAU-AZ2000SE-DR PAU-AZ7000SE PAU-AZW8000SE PAU-AZW8000SE-HC |
PAU-GR8000SE PAU-GR8000SE-HC PAU-GRW9000SE-HC |
|
|---|---|---|---|---|---|
| duct (φ75) |
○ | ||||
| duct (φ100) |
○ | ||||
| duct (φ150) |
○ | ||||
| duct (φ200) |
○ | ||||
| duct (φ250) |
○ | ||||
| Eye flange (φ75) |
○ | ||||
| Eye flange (φ100) |
○ | ||||
| Eye flange (φ150) |
○ | ||||
| Eye flange (φ200) |
○ | ||||
| Eye flange (φ250) |
○ | ||||
| Duct band (φ75) |
○ | ||||
| Duct band (φ100) |
○ | ||||
| Duct band (φ150) |
○ | ||||
| Duct band (φ200) |
○ | ||||
| Duct band (φ250) |
○ |

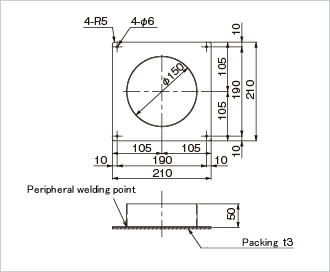

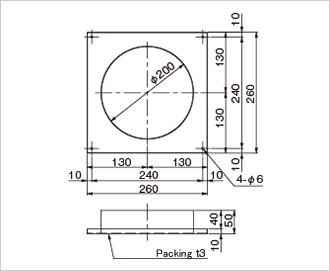

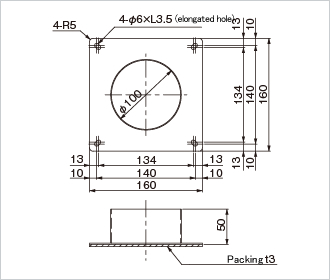

Eye flange outline drawing
- 型式：PAU-GR300SE
- CAD drawings
- 型式：PAU-GR800SE
- CAD drawings
- Model: PAU-GR800SE-HC
- CAD drawings
- 型式：PAU-GR1800SE
- CAD drawings
- Model: PAU-GR1800SE-HC
- CAD drawings
- 型式：PAU-GR3000SE
- CAD drawings
- Model: PAU-GR3000SE-HC
- CAD drawings
- 型式：PAU-GR8000SE
- CAD drawings
- Model: PAU-GR8000SE-HC
- CAD drawings
- Model: PAU-GRW9000SE-HC
- CAD drawings
- Model: PAU-300S
- CAD drawings
- Model: PAU-AR800S
- CAD drawings
- Model: PAU-A920S-HC
- CAD drawings
- Model: PAU-A1400S-HC
- CAD drawings
- Model: PAU-AZ1800SE
- CAD drawings
- Model: PAU-AZ3000SE
- CAD drawings
- Model: PAU-AZ7000SE
- CAD drawings
- Model: PAU-AZ2000SE-DR
- CAD drawings
- Model: PAU-AZW8000SE
- CAD drawings
- Model: PAU-AZW8000SE-HC
- CAD drawings
