HFC alternative pump/tankless chiller
PCU-F3000
| Cooling capacity(W)*1 | 2800／3200 |
|---|---|
| Temperature control stability (℃) | ±0.1 |
| circulating water flow rate range (ℓ/min) | 10～60 |
| circulating water rating flow rate (ℓ/min) | 15／15 |
PCU-F3000 Product details
Specifications
(50/60Hz)
| Cooling system | Air-cooling type |
|---|---|
| Cooling capacity(W)*1 | 2800／3200 |
| circulating water *2 | Clean water, ethylene glycol aqueous solution (concentration 15wt% or less), propylene glycol aqueous solution (concentration 15wt% or less) |
| Temperature control stability (℃) *3 | ±0.1 |
| Ambient temperature(℃) | 5～45 |
| Temperature control/fixed system | Control target *4: Outlet liquid temperature or external temperature sensor measurement part Range [℃]: 5 to 40 |
| Temperature control/tuning system | standard *4: external temperature sensor measurement value Control target: Outlet liquid temperature Tuning range [℃]: -10.0 to +10.0 relative to the reference temperature (factory set to 0.0) |
| circulating water flow rate range (ℓ/min) | 10～60 |
| circulating water rating flow rate (ℓ/min) | 15／15 |
| Maximum circulating water pressure (Mpa) | 1 |
| External dimensions (mm) *5 | H697×W400×D600 |
| Coating Color | Munsell N-87 |
| Weight(kg) | 約51 |
| Caster (Φmm x pcs) | 50×4 |
| rated voltage (V) *6 | Three-phase AC200 (50/60Hz) |
| power consumption (kW) *1 | 0.7／1.0 |
| current consumption (A) *1 | 2.7／3.3 |
| Recommended breaker capacity (A) | 10 |
| circulating water inlet/outlet connection diameter | Rc3/4 |
| Drain outlet diameter | G1/2 |
| Component equipment/Compressor | Fully enclosed rotary type |
| Component equipment/condenser | Structure: Parallel flow condenser |
| Component/Evaporator | Structure: Plate heat exchanger Material: SUS316 (copper brazing) |
| Refrigerant(g) | R1234yf 340g |
| noise (dB) *7 | 51／54 |
| safety circuit/compressor | Thermal protectors, electromagnetic switches |
| safety circuit/ fan motor | Thermal protector, current fuse |
| Input/Output/Error Output | No-voltage a contact (maximum AC250V/1A, DC30V/2A) |
| Input/output/water temperature upper/lower limit alarm | No-voltage a contact (maximum AC250V/1A, DC30V/2A) |
| Input/output/operation stop output | No-voltage a contact (maximum AC250V/1A, DC30V/2A) |
| Input/output/operation stop input | Non-voltage input |
| Input/output/ error reset input | Non-voltage input |
| Input/Output/Emergency Stop Input | Non-voltage input |
| Input/output/ external temperature sensor *7 | Pt100 |
| Input/Output/Ethernet | Communication standard: 10BASE-T/100BASE-TX Communication protocols: Socket (TCP/IP), MC protocol (UDP/IP), Modbus TCP |
| Log data storage | Record items: Date and time, error number, circulating water set temperature, circulating water outlet temperature, external temperature, chiller on/off, fan/compressor on/off, emergency stop input terminal status, operation stop input terminal status, error reset input terminal status, pseudo alarm output status, compressor high pressure, compressor low pressure, compressor discharge temperature, compressor suction temperature, fan control status, cooling operation amount, high pressure protection control status, low pressure protection control status, superheat protection control status, freeze protection control status Recording period: Approximately 1 year and 6 months Recording Interval *8: 2 minute intervals Export method: USB memory, Socket communication |
| Functions | Graph display function, equipment operating status display function, error history display function, operating time display function, calendar function, memo function, water temperature error setting function, operation timer setting function, password setting function, key lock function, log data USB memory write function, external temperature sensor input function, cascade control function, external synchronization control |
*1 Values when Use Area Temperature 25°C, circulating water temperature is 20°C, circulating water is at the rating flow rate, and circulating water is clean water.
*2 If using clean water, please use water that meets the Japan Refrigeration and Air Conditioning Industry Association's water quality standards (JRA-GL 02:1994). Use water with an electrical conductivity of 1 μS/cm or higher. (Above indicates poor purity. Example: 100 μS/cm.) Using circulating water outside specification may result in reduced chiller performance and early failure.
*3 Based on display value of the main body temperature indicator when the load is constant, Use Area Temperature 25°C, circulating water temperature is 20°C, and circulating water is at rating flow rate.
*4 external temperature sensor (Pt100) is not included. Please prepare it yourself.
*5 Excluding protrusions.
*6 Please use power-supply voltage within ±10% of rated voltage.
*7 Value measured 1m in front, at the center of product height, and when stable and without load.
*8 When an error occurs, recording is made at 5-second intervals from approximately 1 minute before the error occurs.

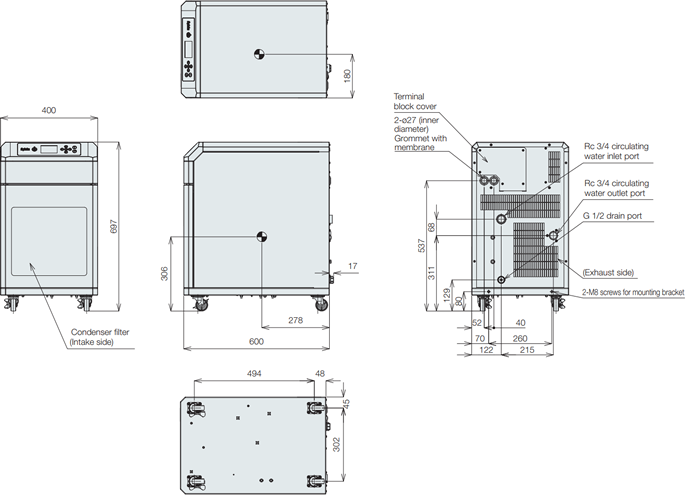

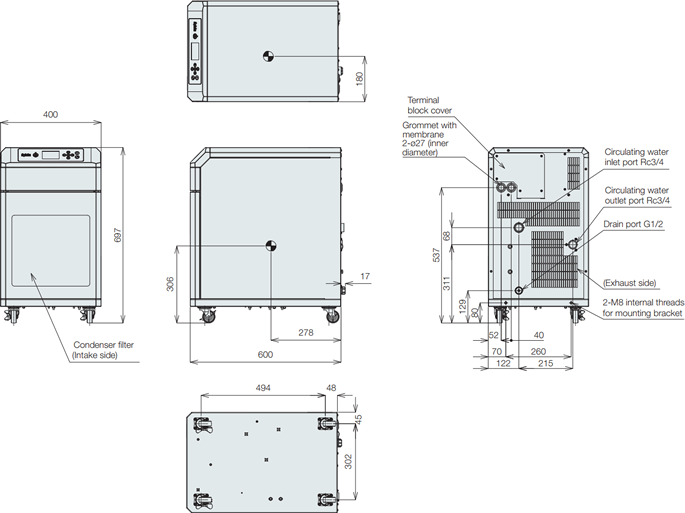

Dimensions
■Each pipe diameter
circulating water inlet: Rc3/4, [recommended tightening torque] 50N・m
circulating water outlet: Rc3/4, [tightening torque (recommended)] 50N・m

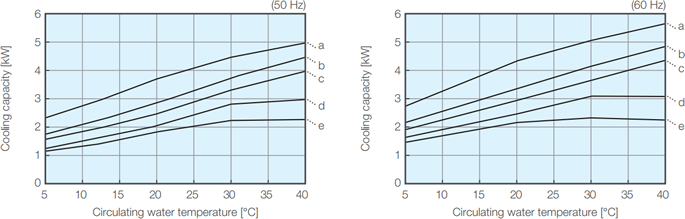

cooling capacity characteristic diagram
a: Ambient temperature 5°C b: Ambient temperature 25°C c: Ambient temperature 32°C d: Ambient temperature 40°C e: Ambient temperature 45°C

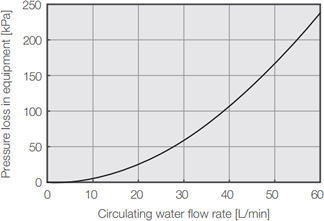

Pressure loss characteristic diagram
HFC alternative chiller
| Model | Cooling capacity (W) |
Heating capacity (W) |
Circulating water temperature range (°C) |
Temperature control precision (°C) |
External dimensions (HxWxD) (mm) |
||
|---|---|---|---|---|---|---|---|
| Air-cooling type PCU-NE1500 |
HFC alternative Small size |
1300／1400 | 230／350 | ±0.1 | 610×400×445 |
Product Catalog - Instruction manual |
|
| Air-cooling type PCU-NE2500 |
HFC alternative Small size |
2300／2600 | 400／600 | ±0.1 | 697×400×600 |
Product Catalog - Instruction manual |
|
| Air-cooling type PCU-NE6000 |
HFC alternative Small size |
5400／6000 | 1200／1600 | ±0.1 | 997×400×600 |
Product Catalog - Instruction manual |
|
| Water-cooling type PCU-NE2500W |
HFC alternative Small size |
2600／3100 | 280／450 | ±0.1 | 697×400×600 |
Product Catalog - Instruction manual |
|
| Water-cooling type PCU-NE6000W |
HFC alternative Small size |
5400／6000 | 1400／1900 | ±0.1 | 997×400×600 |
Product Catalog - Instruction manual |
Product Category
The PCU-NE series is a new chiller that is the first in the industry to use HFC-alternative refrigerants and also comes equipped with two industry-first features: a drive recorder and a time calendar.
This chiller combines high energy-saving performance of up to 50% with durability that can withstand harsh field environment and outdoor use. It also has high-temperature precision and is suitable for a variety of applications.
Controls circulating water over wide range of -10°C to 80°C and with a high precision of ±0.05°C. Widely used in manufacturing, development, and research fields.
HFC alternative pump/tankless chiller
The PCU-F series has a structure that does not have a pump or tank inside the main body. This structure greatly improves design freedom and allows for flexible response to a variety of needs.
