What is HFC alternative chiller?
The 2015 Act on Rational Use and Proper Management of Fluorocarbons imposed six obligations on equipment users, including inspections and leak reporting, and in 2020 regulations were strengthened to include immediate penalties for violations. Chillers that use non-freon-gas refrigerant R1234yf are not subject to the Act, and are therefore not subject to periodic inspections or the obligation to collect fluorocarbons at the time of disposal, reducing the labor and costs associated with fluorocarbon management.
Suitable for the following customers
- I want to install an environment friendly chiller
- Eliminate the burden of regular inspections, record keeping in management books, and costs associated with disposal fluorocarbons, as required by the Fluorocarbons Emissions Control Law
- We want to promote HFC alternative fluorocarbons in preparation for the Kigali Amendment, which will regulate alternative fluorocarbons.
| Model | Cooling capacity (W) |
Heating capacity (W) |
Circulating water temperature range (°C) |
Temperature control precision (°C) |
External dimensions (HxWxD) (mm) |
||
|---|---|---|---|---|---|---|---|
| Air-cooling type PCU-NE1500 |
1300／1400 | 230／350 | ±0.1 | 610×400×445 |
Product Catalog - Instruction manual |
||
| Air-cooling type PCU-NE2500 |
2300／2600 | 400／600 | ±0.1 | 697×400×600 |
Product Catalog - Instruction manual |
||
| Air-cooling type PCU-NE6000 |
5400／6000 | 1200／1600 | ±0.1 | 997×400×600 |
Product Catalog - Instruction manual |
||
| Water-cooling type PCU-NE2500W |
2600／3100 | 280／450 | ±0.1 | 697×400×600 |
Product Catalog - Instruction manual |
||
| Water-cooling type PCU-NE6000W |
5400／6000 | 1400／1900 | ±0.1 | 997×400×600 |
Product Catalog - Instruction manual |
Select a chiller based on its features
Product Category

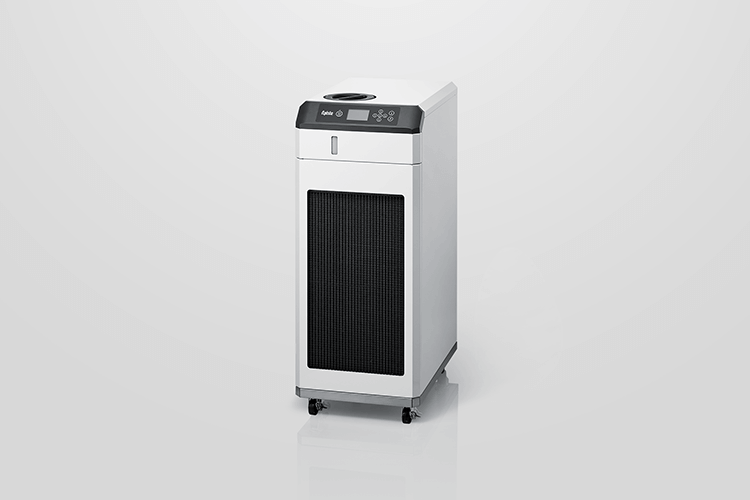

The PCU-NE series is a new chiller that is the first in the industry to use HFC-alternative refrigerants and also comes equipped with two industry-first features: a drive recorder and a time calendar.
This chiller combines high energy-saving performance of up to 50% with durability that can withstand harsh field environment and outdoor use. It also has high-temperature precision and is suitable for a variety of applications.
Controls circulating water over wide range of -10°C to 80°C and with a high precision of ±0.05°C. Widely used in manufacturing, development, and research fields.
HFC alternative pump/tankless chiller
The PCU-F series has a structure that does not have a pump or tank inside the main body. This structure greatly improves design freedom and allows for flexible response to a variety of needs.
