high-performance chiller
PCU-SL14000
| Cooling capacity(W)*1 | 13300／13300 |
|---|---|
| Thermal capacity(W) | 2500 |
| Temperature control stability (℃) | ±0.1 |
| circulating water temperature range (clean water) (℃) | 5～45 |
| circulating water temperature range (antifreeze) (℃) | -5～45 |
| circulating water flow rate range (ℓ/min) | 20～70 |
PCU-SL14000 Product details
Specifications
(50/60Hz)
| Cooling system | Air-cooling type |
|---|---|
| Cooling capacity(W)*1 | 13300／13300 |
| Thermal capacity(W) | 2500 |
| circulating water | Pure water (1 μs/cm or more), distilled water, ethylene glycol (concentration 30% or less) |
| Temperature control stability (℃) | ±0.1 |
| Ambient temperature(℃) | -5～45 |
| circulating water temperature range (clean water) (℃) | 5～45 |
| circulating water temperature range (antifreeze) (℃) | -5～45 |
| circulating water flow rate range (ℓ/min) | 20～70 |
| circulating water pressure range (Mpa) | 0.7 or less |
| Lifting height (m) | 51 |
| Tank capacity (ℓ) | 35 |
| Cooling water temperature range (℃) | 5～45 |
| External Dimensions(mm) | H1496×W850×D750 |
| Coating Color | DIC G-260 (Munsell value: equivalent to N7.5) |
| Weight(kg) | 145 |
| Rated voltage(V) | Three-phase AC200~230V |
| power consumption (kW) | 5.7 |
| current consumption (A) | 17 |
| current consumption /MIN (A) | 17 |
| current consumption /MAX (A) | 22 |
| power supply capacity (kVA) | 7.6 |
| Recommended breaker capacity (A) | 30 |
| Component equipment/Compressor | Fully enclosed rotary type |
| Component equipment/condenser | Parallel flow condenser type forced Air-cooling type |
| Components/coolers | Plate Heat Exchanger |
| Certification | CE |
| Refrigerant(g) | R410A 1700g |
| noise (dB) | 73 |
| safety circuit/compressor | Motor protector |
| Input/output/water temperature upper/lower limit alarm | Non-voltage a contact (AC250V/2A) |
| Input/output/operation stop output | Non-voltage a contact (AC250V/2A) |
| Input/output/operation stop input | Non-voltage input |
| Input/output/ error reset input | Non-voltage input |
| Input/Output/Emergency Stop Input | Non-voltage input |
| Input/Output/Ethernet | Communication standard: Ethernet 10BASE-T/100BASE-TX Communication protocol: Socket (TCP/IP), MC protocol (UDP/IP) IP address: IPv4 |
| Safety performance | CE (Low Voltage Directive, EMC Directive) |
* cooling capacity, power consumption, and current consumption rating: When circulating water temperature is 20°C, the circulating water flow rate is 45 L/min, and the ambient temperature is 32°C.
*Heating capacity: When starting up at an ambient temperature of 40°C. Varies depending on the ambient temperature.
* circulating water: Use pure water with a purity of 1 μS/cm or higher (low purity). Clean water: Japan Refrigeration and Air Conditioning Industry Association water quality standard (JRA GL-02-1944).
*Temperature control stability: Based on display value of the main body temperature indicator when the load is constant.
*Maximum current consumption: When circulating water temperature is 20°C, the circulating water flow rate is 70 L/min, and the ambient temperature is 45°C.
*Vibration resistance: up to 100Hz under test conditions of MIL-STD-810F standard.
*Operating noise: Measured at a horizontal distance of 1m and a height of 1m.

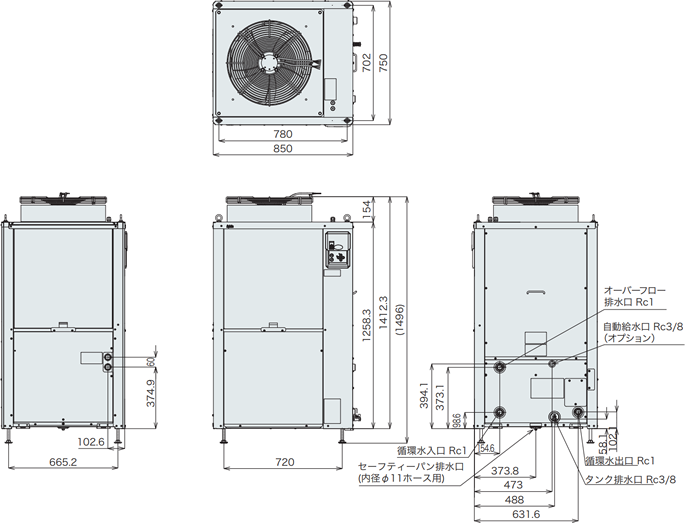

Dimensions
■Each pipe diameter
circulating water outlet: Rc1, [tightening torque (recommended)] 80N・m
circulating water inlet: Rc1, [tightening torque (recommended)] 80N・m
Tank drain port: Rc3/8, [tightening torque (recommended)] 25N・m
Overflow drain port: Rc1, [tightening torque (recommended)] 80N・m
Automatic water supply port (option): Rc3/8, [recommended tightening torque] 25N・m
Safety pan drain outlet: for hose with inner diameter Φ11

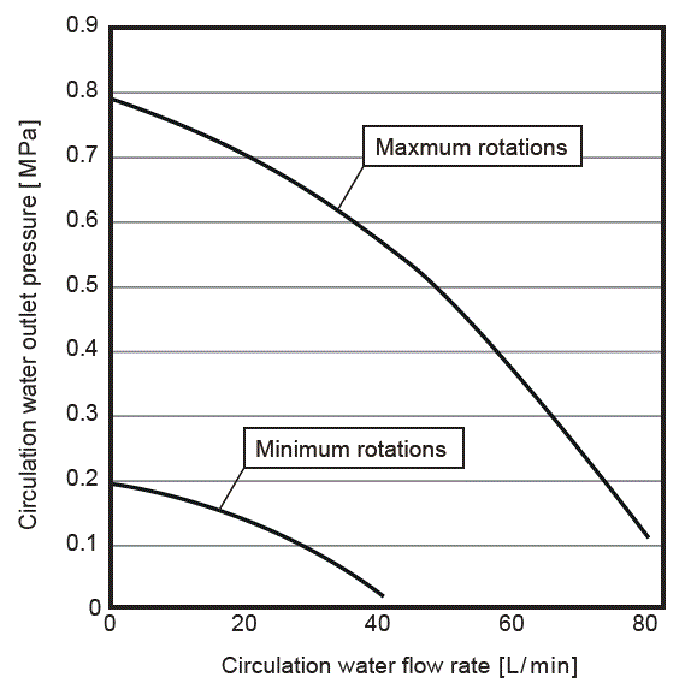

Pump capacity
Head: 1 [m] = 0.0098 [MPa].

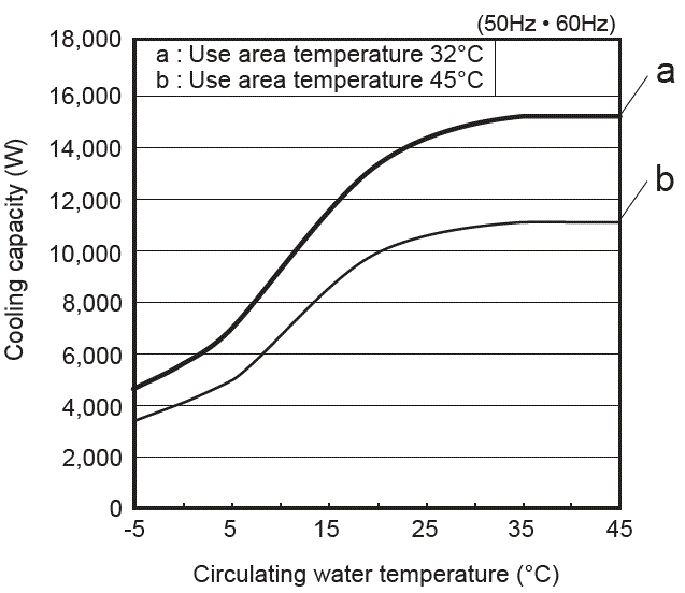

Cooling capacity
HFC alternative chiller
| Model | Cooling capacity (W) |
Heating capacity (W) |
Circulating water temperature range (°C) |
Temperature control precision (°C) |
External dimensions (HxWxD) (mm) |
||
|---|---|---|---|---|---|---|---|
| Air-cooling type PCU-NE1500 |
HFC alternative Small size |
1300／1400 | 230／350 | ±0.1 | 610×400×445 |
Product Catalog - Instruction manual |
|
| Air-cooling type PCU-NE2500 |
HFC alternative Small size |
2300／2600 | 400／600 | ±0.1 | 697×400×600 |
Product Catalog - Instruction manual |
|
| Air-cooling type PCU-NE6000 |
HFC alternative Small size |
5400／6000 | 1200／1600 | ±0.1 | 997×400×600 |
Product Catalog - Instruction manual |
|
| Water-cooling type PCU-NE2500W |
HFC alternative Small size |
2600／3100 | 280／450 | ±0.1 | 697×400×600 |
Product Catalog - Instruction manual |
|
| Water-cooling type PCU-NE6000W |
HFC alternative Small size |
5400／6000 | 1400／1900 | ±0.1 | 997×400×600 |
Product Catalog - Instruction manual |
Product Category
The PCU-NE series is a new chiller that is the first in the industry to use HFC-alternative refrigerants and also comes equipped with two industry-first features: a drive recorder and a time calendar.
This chiller combines high energy-saving performance of up to 50% with durability that can withstand harsh field environment and outdoor use. It also has high-temperature precision and is suitable for a variety of applications.
Controls circulating water over wide range of -10°C to 80°C and with a high precision of ±0.05°C. Widely used in manufacturing, development, and research fields.
HFC alternative pump/tankless chiller
The PCU-F series has a structure that does not have a pump or tank inside the main body. This structure greatly improves design freedom and allows for flexible response to a variety of needs.
