HFC alternative chiller
PCU-NE2500
| Cooling capacity(W)*1 | 2300／2600 |
|---|---|
| Thermal capacity(W) | 400／600 |
| Temperature control stability (℃) | ±0.1 |
| circulating water rating flow rate (ℓ/min) | 15／15 |
Inquiry
Download
PCU-NE2500 Product details
Specifications
(50/60Hz)
| Cooling method | Air-cooling type |
|---|---|
| Cooling capacity(W)*1 | 2300／2600 |
| Heating capacity (W) *1 | 400／600 |
| circulating water *2 | Clean water, ethylene glycol aqueous solution (concentration 15wt% or less), propylene glycol aqueous solution (concentration 15wt% or less) |
| Temperature control stability (℃) *3 | ±0.1 |
| Ambient temperature(℃) | 5～45 |
| circulating water rating flow rate (ℓ/min) | 15／15 |
| Lifting height (m) *4 | 14／20 |
| Tank capacity (ℓ) | about 12 |
| External dimensions (mm) *5 | H697×W400×D600 |
| Coating Color | Munsell N-87 |
| Weight(kg) | about 58 |
| Caster (Φmm x pcs) | 50×4 |
| rated voltage (V) *6 | Three phase AC200 |
| power consumption (kW) *1 | 0.9／1.2 |
| current consumption (A) *1 | 3.2／3.7 |
| Recommended breaker capacity (A) | 10 |
| circulating water inlet/outlet connection diameter | Rc3/4 |
| Drain outlet diameter | G1/2 |
| Component equipment/Compressor | Fully enclosed rotary type |
| Component equipment/condenser | Parallel Flow Condenser |
| Component/Evaporator | Structure: Plate heat exchanger Material: SUS316 (copper brazing) |
| Certification | CE/ETL |
| Refrigerant(g) | R1234yf 340g |
| noise (dB) *7 | 58／59 |
| safety circuit/compressor | Thermal protector |
| safety circuit/ fan motor | Thermal protector, current fuse |
| Input/Output/Error Output | No-voltage a contact (maximum AC250V/1A, DC30V/2A) |
| Input/output/water temperature upper/lower limit alarm | No-voltage a contact (maximum AC250V/1A, DC30V/2A) |
| Input/output/operation stop output | No-voltage a contact (maximum AC250V/1A, DC30V/2A) |
| Input/output/operation stop input | Non-voltage input |
| Input/output/ error reset input | Non-voltage input |
| Input/Output/Emergency Stop Input | Non-voltage input |
| Input/output/ external temperature sensor *8 | Pt100 |
| Input/Output/Ethernet | Communication standard: 10BASE-T/100BASE-TX Communication protocols: Socket (TCP/IP), MC protocol (UDP/IP), Modbus TCP |
| Log data storage | Record items: Date and time, error number, circulating water set temperature, circulating water outlet temperature, external temperature, chiller on/off, pump/fan/compressor on/off, pump stand-alone operation status, emergency stop input terminal status, operation stop input terminal status, error reset input terminal status, pseudo alarm output status, compressor high pressure, compressor low pressure, compressor discharge temperature, compressor suction temperature, water shortage sensor status, fan control status, cooling operation amount, high pressure protection control status, low pressure protection control status, superheat protection control status, freeze protection control status Recording period: Approximately 1 year and 6 months Recording Interval *9: 2 minute intervals Export method: USB memory, Socket communication |
| Functions | Graph display function, equipment operation status display function, error history display function, operation time display function, calendar function, memo function, water temperature error setting function, operation timer setting function, password setting function, key lock function, anti-freeze operation function, log data USB memory write function, external temperature sensor input function, cascade control function |
*1 Values when Use Area Temperature 25°C, circulating water temperature is 20°C, and circulating water is at the rating flow rate.
*2 If using clean water, please use water that meets the water quality standards of the Japan Refrigeration and Air Conditioning Industry Association (JRA-GL 02:1994).
Use materials with an electrical conductivity of 1 μS/cm or higher (higher than this indicates poor purity, e.g., 100 μS/cm).
Using circulating water outside of specification may result in reduced chiller performance and premature failure.
*3 Based on display value of the main body temperature indicator when the load is constant, Use Area Temperature 25°C, circulating water temperature is 20°C, and circulating water is at rating flow rate.
*4This is the value when the circulating water flow rate is 4 liters/min. Avoid operating the pump at a circulating water flow rate of less than 4 liters/min, as this may cause the pump to malfunction.
*5 Excluding protrusions.
*6 Please use power-supply voltage within ±10% of rated voltage.
*7 Value measured at 1m in front, 1m high, and stable with no load.
*8 external temperature sensor is not included. Please prepare one yourself.
*9 When an error occurs, recording is made at 5-second intervals starting approximately 1 minute before the error occurs.

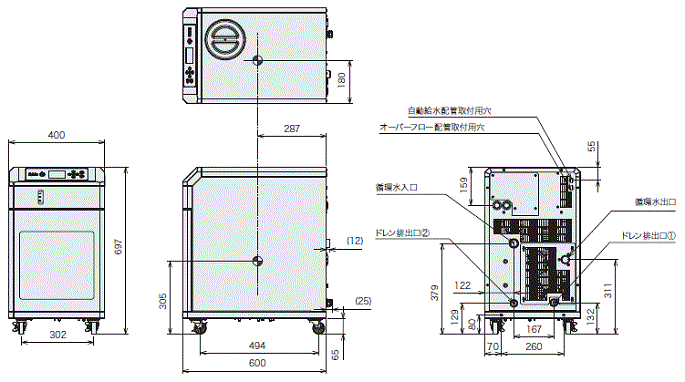

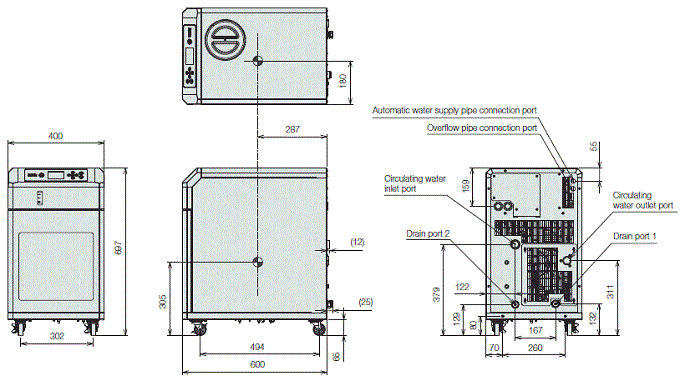

Dimensions
■Each pipe diameter
circulating water inlet: Rc3/4, [recommended tightening torque] 50N・m
circulating water outlet: Rc3/4, [tightening torque (recommended)] 50N・m

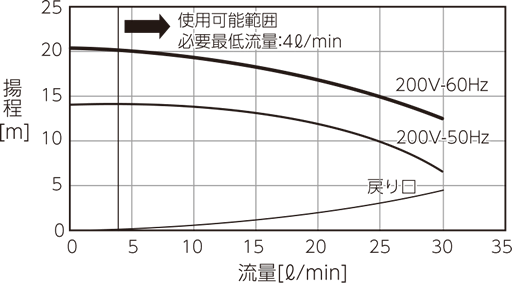

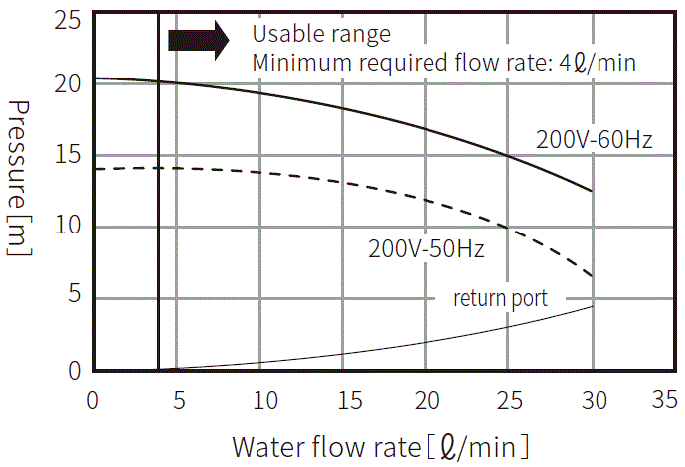

Pump capacity
Head: 1 [m] = 0.0098 [MPa].

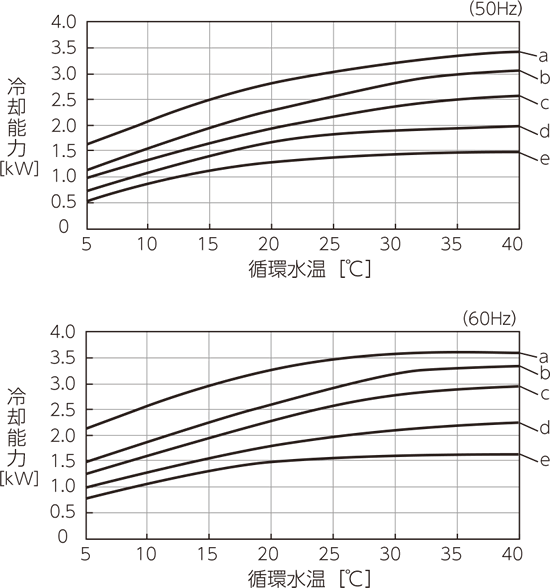

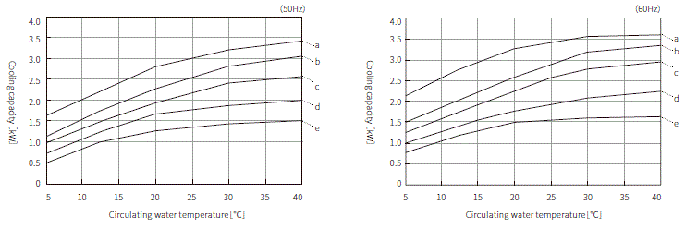

Cooling capacity
a: Ambient temperature 5°C b: Ambient temperature 25°C c: Ambient temperature 32°C d: Ambient temperature 40°C e: Ambient temperature 45°C
