What is a high-head chiller?

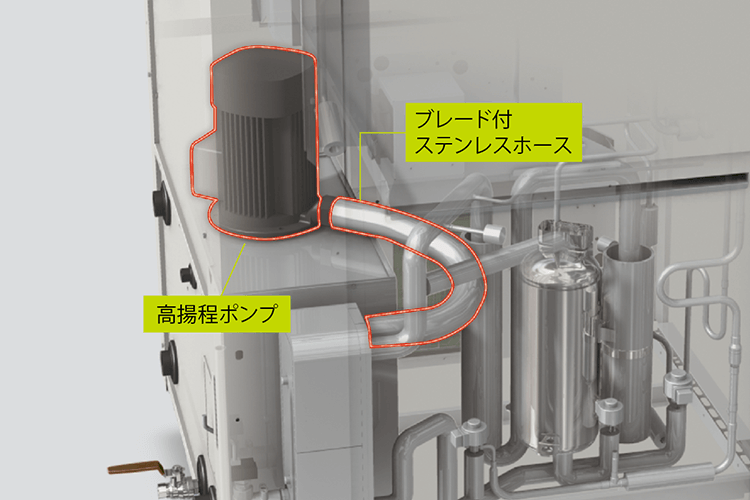

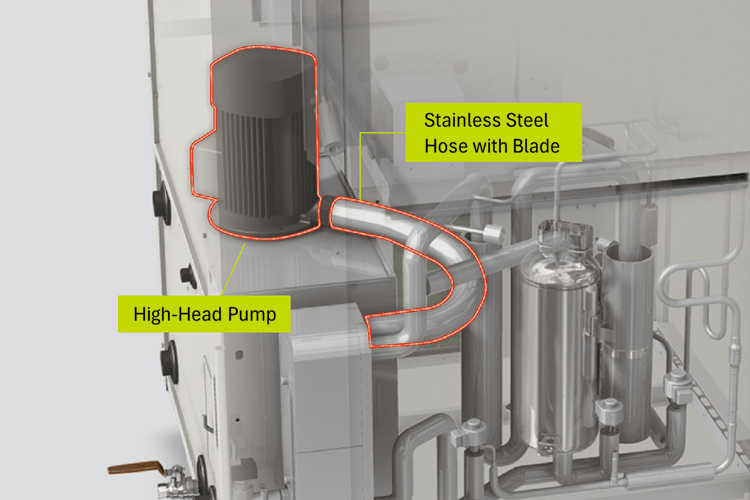

A high-head pump is included as standard, achieving a maximum discharge pressure of 0.7 MPa and a maximum head of 70 m for high water flow. A braided stainless steel hose is used immediately after the pump, making it a durable design that can rival high-output pumps. It can also be used in situations where the chiller is far from the equipment, the installation location is high, or the piping is thin.
Suitable for the following customers
- There is not enough space to install the chiller, so we want to install it away from the site.
- We want to provide a stable supply of cooling water to equipment with narrow piping.
- Piping pressure loss is large due to piping being installed at a high position, piping being thin, or having many bends.
| Model | Cooling capacity (W) |
Heating capacity (W) |
Circulating water temperature range (°C) |
Temperature control precision (°C) |
External dimensions (HxWxD) (mm) |
||
|---|---|---|---|---|---|---|---|
| Air-cooling type PCU-SL10000 |
10300／10300 | 2500 | 5～45 | ±0.1 | 1468×850×750 |
Product Catalog - Instruction manual |
|
| Air-cooling type PCU-SL14000 |
13300／13300 | 2500 | 5～45 | ±0.1 | 1496×850×750 |
Product Catalog - Instruction manual |
|
| Water-cooling type PCU-SL12000W |
12000／12000 | 2500 | 5～45 | ±0.1 | 1349×850×750 |
Product Catalog - Instruction manual |
|
| Water-cooling type PCU-SL15000W |
14200／14200 | 2500 | 5～45 | ±0.1 | 1349×850×750 |
Product Catalog - Instruction manual |
Select a chiller based on its features
Product Category
The PCU-NE series is a new chiller that is the first in the industry to use HFC-alternative refrigerants and also comes equipped with two industry-first features: a drive recorder and a time calendar.
This chiller combines high energy-saving performance of up to 50% with durability that can withstand harsh field environment and outdoor use. It also has high-temperature precision and is suitable for a variety of applications.
Controls circulating water over wide range of -10°C to 80°C and with a high precision of ±0.05°C. Widely used in manufacturing, development, and research fields.
HFC alternative pump/tankless chiller
The PCU-F series has a structure that does not have a pump or tank inside the main body. This structure greatly improves design freedom and allows for flexible response to a variety of needs.
