Chiller that can be installed outdoors

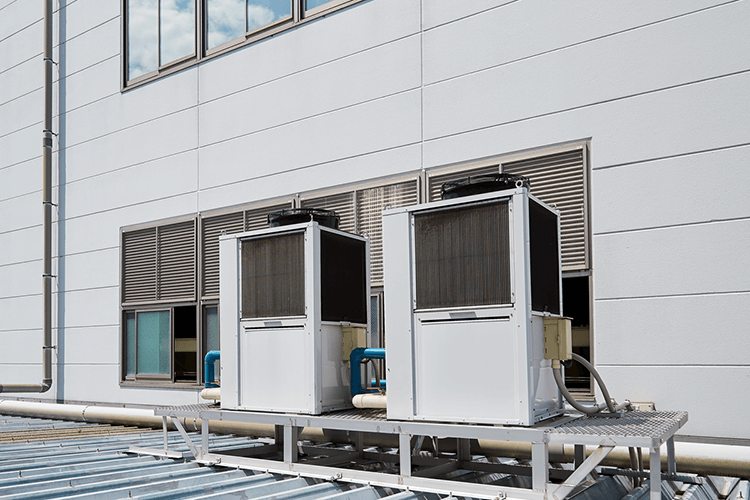

To ensure electrical components are protected during outdoor use, the unit features a separate upper and lower structure, achieving IPX4 water performance. Its water resistance is resistant to tests that are more stringent than JIS standards. It can be used safely outdoors even when there is not enough space for indoor installation or when you do not want to release exhaust heat into the factory.
Suitable for the following customers
- I want to install it outdoors
- There is no space to install a chiller in the factory
| Model | Cooling capacity (W) |
Heating capacity (W) |
Circulating water temperature range (°C) |
Temperature control precision (°C) |
External dimensions (HxWxD) (mm) |
||
|---|---|---|---|---|---|---|---|
| Air-cooling type PCU-SL10000 |
10300／10300 | 2500 | 5～45 | ±0.1 | 1468×850×750 |
Product Catalog - Instruction manual |
|
| Air-cooling type PCU-SL14000 |
13300／13300 | 2500 | 5～45 | ±0.1 | 1496×850×750 |
Product Catalog - Instruction manual |
|
| Water-cooling type PCU-SL12000W |
12000／12000 | 2500 | 5～45 | ±0.1 | 1349×850×750 |
Product Catalog - Instruction manual |
|
| Water-cooling type PCU-SL15000W |
14200／14200 | 2500 | 5～45 | ±0.1 | 1349×850×750 |
Product Catalog - Instruction manual |
Select a chiller based on its features
Product Category
The PCU-NE series is a new chiller that is the first in the industry to use HFC-alternative refrigerants and also comes equipped with two industry-first features: a drive recorder and a time calendar.
This chiller combines high energy-saving performance of up to 50% with durability that can withstand harsh field environment and outdoor use. It also has high-temperature precision and is suitable for a variety of applications.
Controls circulating water over wide range of -10°C to 80°C and with a high precision of ±0.05°C. Widely used in manufacturing, development, and research fields.
HFC alternative pump/tankless chiller
The PCU-F series has a structure that does not have a pump or tank inside the main body. This structure greatly improves design freedom and allows for flexible response to a variety of needs.
