What is a water-cooled chiller?

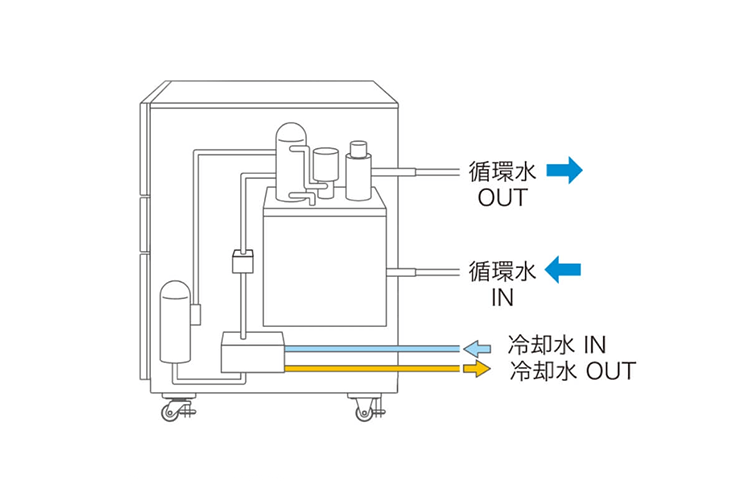

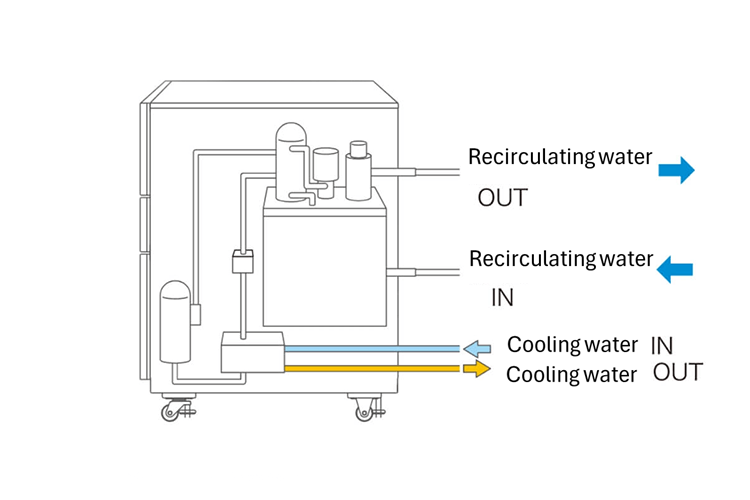

This chiller cools circulating water inside the chiller by exchanging heat with cooling water. Although piping work is required to draw cooling water, it has superior cooling efficiency compared to Air-cooling type. In addition, since there is no fan, there is less noise, and since there is no exhaust or heat released into the indoor space, it can be operated in a clean environment.
Suitable for the following customers
- I want to avoid exhaust heat being generated indoors.
- I want to drive as little as possible
| Model | Cooling capacity (W) |
Heating capacity (W) |
Circulating water temperature range (°C) |
Temperature control precision (°C) |
External dimensions (HxWxD) (mm) |
||
|---|---|---|---|---|---|---|---|
| Water-cooling type PCU-NE2500W |
2600／3100 | 280／450 | ±0.1 | 697×400×600 |
Product Catalog - Instruction manual |
||
| Water-cooling type PCU-NE6000W |
5400／6000 | 1400／1900 | ±0.1 | 997×400×600 |
Product Catalog - Instruction manual |
||
| Water-cooling type PCU-SL12000W |
12000／12000 | 2500 | 5～45 | ±0.1 | 1349×850×750 |
Product Catalog - Instruction manual |
|
| Water-cooling type PCU-SL15000W |
14200／14200 | 2500 | 5～45 | ±0.1 | 1349×850×750 |
Product Catalog - Instruction manual |
|
| Water-cooling type PCU-W3610R |
3100／3400 | 1000 | -10～80 | ±0.05 (high-precision mode) | 1000×440×800 |
Product Catalog - Instruction manual |
|
| Water-cooling type PCU-W6630R |
5900／6400 | 6000 | -10～80 | ±0.10 (high-precision mode) | 1250×440×800 |
Product Catalog - Instruction manual |
|
| Water-cooling type PCU-W9130R |
7900／8900 | 6000 | -10～80 | ±0.10 (high-precision mode) | 1250×440×800 |
Product Catalog - Instruction manual |
Select a chiller based on its features
Product Category
The PCU-NE series is a new chiller that is the first in the industry to use HFC-alternative refrigerants and also comes equipped with two industry-first features: a drive recorder and a time calendar.
This chiller combines high energy-saving performance of up to 50% with durability that can withstand harsh field environment and outdoor use. It also has high-temperature precision and is suitable for a variety of applications.
Controls circulating water over wide range of -10°C to 80°C and with a high precision of ±0.05°C. Widely used in manufacturing, development, and research fields.
HFC alternative pump/tankless chiller
The PCU-F series has a structure that does not have a pump or tank inside the main body. This structure greatly improves design freedom and allows for flexible response to a variety of needs.
