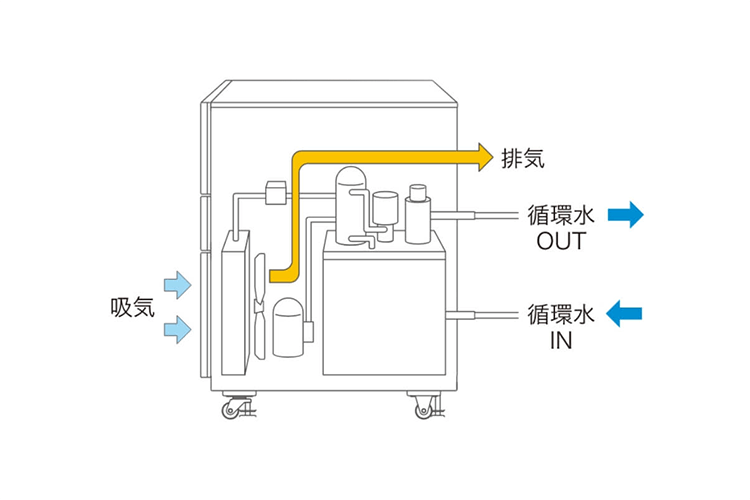

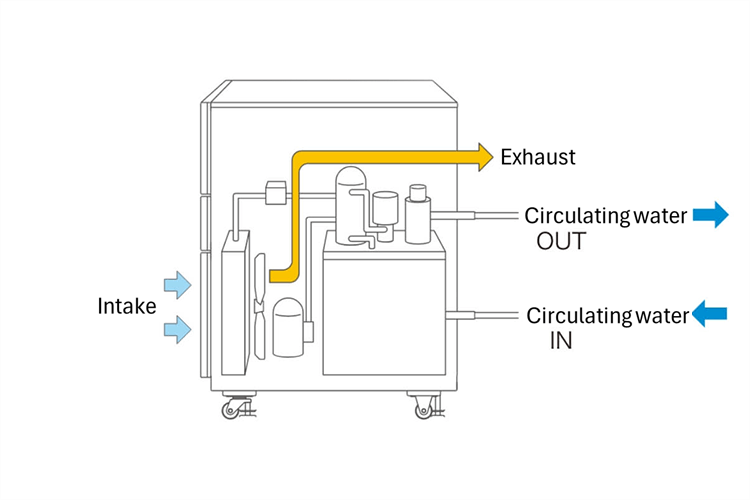

What is an air-cooling type chiller?
This chiller uses a fan inside the chiller to exchange heat with outside air to cool circulating water. Although there is the risk of the room temperature rising due to exhausted heat entering the room space, installation is easy as piping and other parts for cooling water are not required, eliminating the need for troublesome maintenance.
Suitable for the following customers
- There is no cooling water supply facility at the installation site
- There is a possibility that the chiller will need to be relocated after installation.
| Model | Cooling capacity (W) |
Heating capacity (W) |
Circulating water temperature range (°C) |
Temperature control precision (°C) |
External dimensions (HxWxD) (mm) |
||
|---|---|---|---|---|---|---|---|
| Air-cooling PCU-NE1500 |
1300／1400 | 230／350 | 5～40 | ±0.1 | 610×400×445 |
Catalog Manual |
|
| Air-cooling PCU-NE2500 |
2300／2600 | 400／600 | 5～40 | ±0.1 | 697×400×600 |
Catalog Manual |
|
| Air-cooling PCU-NE6000 |
5400／6000 | 1200／1600 | 5～40 | ±0.1 | 997×400×600 |
Catalog Manual |
|
| Air-cooling PCU-SL10000 |
10300／10300 | 2500 | 5～45 | ±0.1 | 1468×850×750 |
Catalog Manual |
|
| Air-cooling PCU-SL14000 |
13300／13300 | 2500 | 5～45 | ±0.1 | 1496×850×750 |
Catalog Manual |
|
| Air-cooling PCU-1610R |
1200／1300 | 700 | -10～80 | ±0.05 (high-precision mode) | 950×400×770 |
Catalog Manual |
|
| Air-cooling PCU-3310R |
2800／3100 | 1000 | -10～80 | ±0.05 (high-precision mode) | 1000×440×800 |
Catalog Manual |
|
| Air-cooling PCU-6320R |
5800／6200 | 6000 | -10～80 | ±0.10 (high-precision mode) | 1250×440×800 |
Catalog Manual |
|
| Air-cooling PCU-6330R |
5700／6100 | 6000 | -10～80 | ±0.10 (high-precision mode) | 1250×440×800 |
Catalog Manual |
|
| Air-cooling PCU-F3000 |
2800／3200 | ±0.1 | 697×400×600 |
Catalog Manual |
|||
| Air-cooling PCU-F7000 |
5700／6700 | ±0.1 | 997×400×600 |
Catalog Manual |
Select a chiller based on its features
Product Category
The PCU-NE series is a new chiller that is the first in the industry to use HFC-alternative refrigerants and also comes equipped with two industry-first features: a drive recorder and a time calendar.
Highly durable, energy-saving chiller
This chiller combines high energy-saving performance of up to 50% with durability that can withstand harsh field environment and outdoor use. It also has high-temperature precision and is suitable for a variety of applications.
Wide range High stability Chiller
Controls circulating water over wide range of -10°C to 80°C and with a high precision of ±0.05°C. Widely used in manufacturing, development, and research fields.
HFC alternative pump/tankless chiller
The PCU-F series has a structure that does not have a pump or tank inside the main body. This structure greatly improves design freedom and allows for flexible response to a variety of needs.
If you are having trouble selecting a product or would like to discuss implementation,
Please feel free to contact us.
