Control panel cooling unit ENC-GR500L-SUS
Control Panel Cooling unit
Non-freon-gas SUS body (outdoor specification)
Side-mounting
ENC-GR500L-SUS
ENC Series
* For safety standards of the ENC-GR-eco/SUS series, please contact our sales representative separately.
- Non-freon-gas
- SUS body (outdoor specification)
| Cooling capacity(W) | 470 |
|---|---|
| Rated Voltage(V) | Single-phase 200 to 240V AC |
| Mounting type | Side-mounting |
| External dimensions(mm) | H700×W350×D99 |
| Weight(kg) | 17 |
Product Details for ENC-GR500L-SUS
Specifications
(50／60Hz)
| Mounting type | Side-mounting |
|---|---|
| Cooling capacity(W) | 470 |
| Setting temperature range(℃) | 25 to 45 |
| Ambient Temperature(℃) | -5 to 55 |
| Ambient Humidity(%RH) | 10～85 (No condensation) |
| Dimensions(mm) | H700×W350×D99 |
| Weight(kg) | 17 |
| Surface finish | SUS-HL Finish |
| Rated voltage(V) | Single-phase 200 to 240V AC |
| Current consumption : Rating(A) | 1.9/1.7 |
| Current consumption : Max(A) | 2.7/2.4 |
| Power consumption : Rating(W) | 275 |
| Power consumption : Max(W) | 395 |
| Recommended breaker capacity (A) | 5 |
| Vibration resistance | Equivalent to JIS Z 0200 Level1 |
| Dustproof and splashproof protection grade | IPX4 (ENC-SUS unit only), Equivalent to IP54 (internal circulation route) |
| Refrigerant / Amount(g) | R1234yf 160g |
| Noise (dB (A)) | Approx. 76 |
| External output | Alarm output (No-voltage/normal open: resistive load 250V 2A), Can be switched to no-voltage/normal close by setting |
| Display | Internal temperature/Error/RUN |
*Cooling Capacity : Rated capacity value when ambient temperat ure is 35°C and ambient humidity is 40%RH , power source & voltage : 200V. (Measuring specification :JIS B 8615-1 the inside of a air enthalpy test method)
*Use area temperature / humidity : Use area temperature / humi dity is not meant to satisfy all conditions in temperature and humidity.
*Rating Value : 35°C ambient temperature, ambient humidity RH 40%, power source & voltage : 200V.
*Maximum Value : The ambient temperature at MAX value has spec ification separately.
*Use the product keeping the use power supply and voltage; wit hin ±10% of rated power supply and rated voltage.
*Consumption current and wattage are values during cooling ope ration.
*Dust prevention / dust proof protection class : Excluding dra in pipe section
*Reading an instruction manual well certainly before use and p lease use it right.

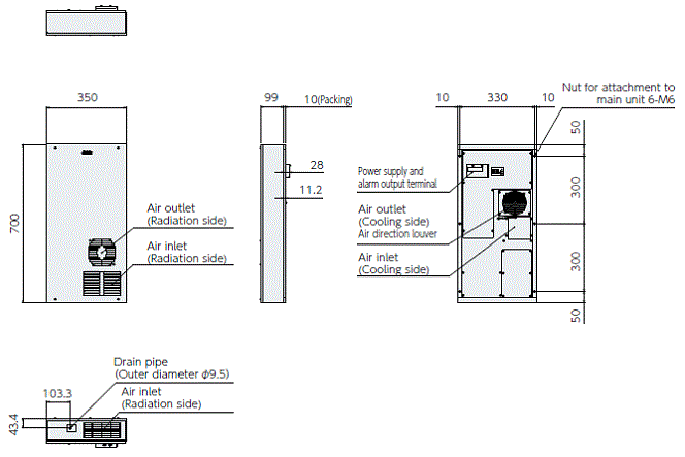

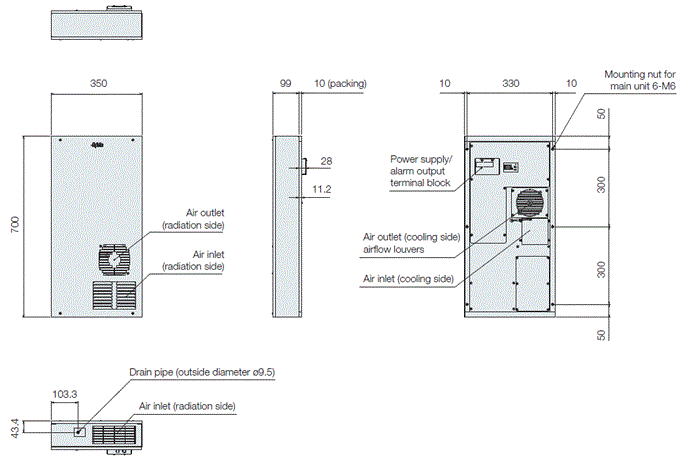

External dimensions

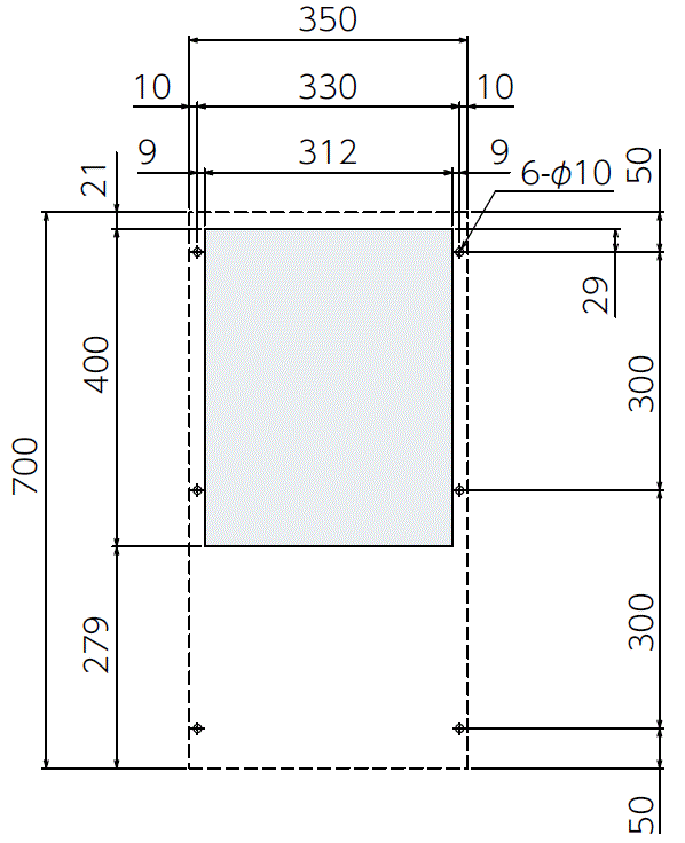

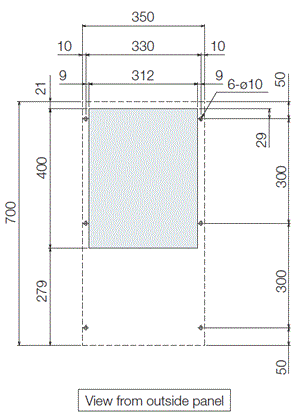

Diagram of Panel Cutout

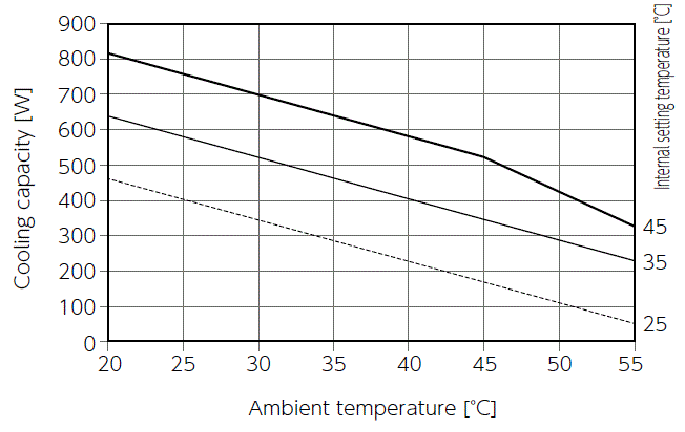

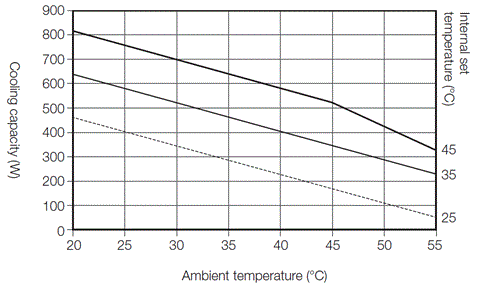

Capacity characteristic chart
[Caution]
To ensure proper operation of this equipment, read the operation manual before use.
Depending on model and quantity, separate charter delivery may be arranged (additional costs apply).
Overseas at the time of delivery, we recommend packing for overseas separately.
Please check through the cooler between the FA and the power (circuit breakers) to the appropriate specification of the FA breaker cooler.
Cause of failure and be used at the rated power supply out of range.
Please use the service and maintenance on a regular basis.
Failure to maintain regular maintenance, you may be a factor in product performance degradation trouble.
When the outside temperature is low in winter, please do not let the FA cooler continuous operation.
When disposing of this product, you should comply with various laws and regulations, please go to the appropriate.
