HFC alternative SUS body (outdoor specification)
ENC-GR1500L-SUS
| Cooling capacity(W)*1 | 1480 |
|---|---|
| Rated voltage(V) | Single-phase 200 to 240V AC |
| Mounting Type | Side-mounting |
| External Dimensions(mm) | H1370×W400×D119 |
| Weight(kg) | 31 |
Inquiry
Download
ENC-GR1500L-SUS Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Side-mounting |
|---|---|
| Cooling capacity(W)*1 | 1480 |
| Setting temperature range (℃) | 25～45 |
| Ambient temperature(℃) | -5～55 |
| Ambient humidity(%RH) | 10～85 (No condensation) |
| External Dimensions(mm) | H1370×W400×D119 |
| Weight(kg) | 31 |
| Surface Finish | SUS-HL finish |
| Rated voltage(V) | Single-phase 200 to 240V AC |
| Current consumption *3 : Rating(A) *4 | 4.3／4.1 |
| Current consumption *3 : Max(A) *5 | 5.2／4.9 |
| Power consumption *3 : Rating(W) *4 | 700 |
| Power consumption *3 : Max(W) *5 | 830 |
| Recommended breaker capacity (A) | 10 |
| Vibration resistance | Equivalent to JIS Z0200 Level1 |
| Dust and water proof protection rating | IPX4 (product only) IP54 equivalent (internal circulation route) |
| Certification | CE / UL / CCC |
| Refrigerant / Amount(g) | R1234yf 600g |
| Noise (dB(A)) | 約79 |
| External output | alarm output (non-voltage a contact: 250V 2A resistive load) can be switched to non-voltage b contact by setting |
| Display | Panel temperature/Error/RUN |
* cooling capacity: rating capacity values at ambient temperature 35°C, humidity 40%RH, power-supply voltage 200V. (Measurement conditions: JIS B 8615-1 indoor side air enthalpy test method)
* Use Area Temperature / use area Humidity specify the operating range and do not guarantee rating performance.
* rating values: rating values at ambient temperature 35°C and humidity 40%RH and power-supply voltage 200V.
*MAX value: The ambient temperature at MAX value is specified respectively.
*Use power-supply voltage within ±10% of rated voltage.
current consumption and power consumption are the values at the time of cooling operation.
*Dustproof and drip-proof protection grade: (product alone) excluding the inside mounting surface of the board/(internal circulation route) excluding the drain pipe part
Please read the instruction manual carefully before use and use the product correctly.

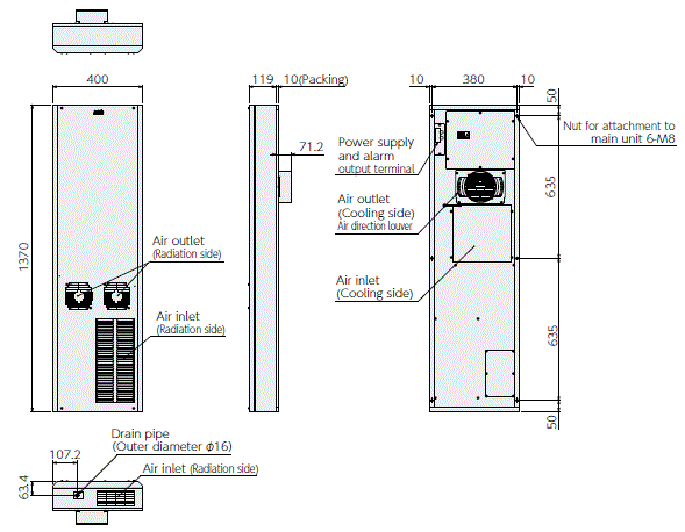

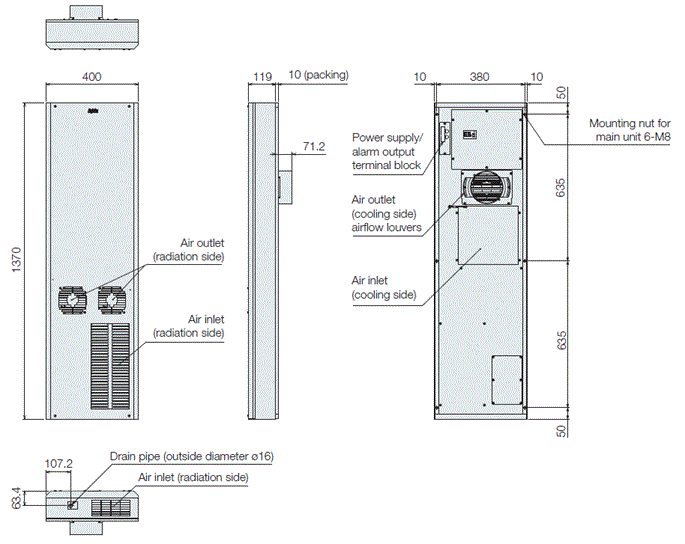

External dimensions

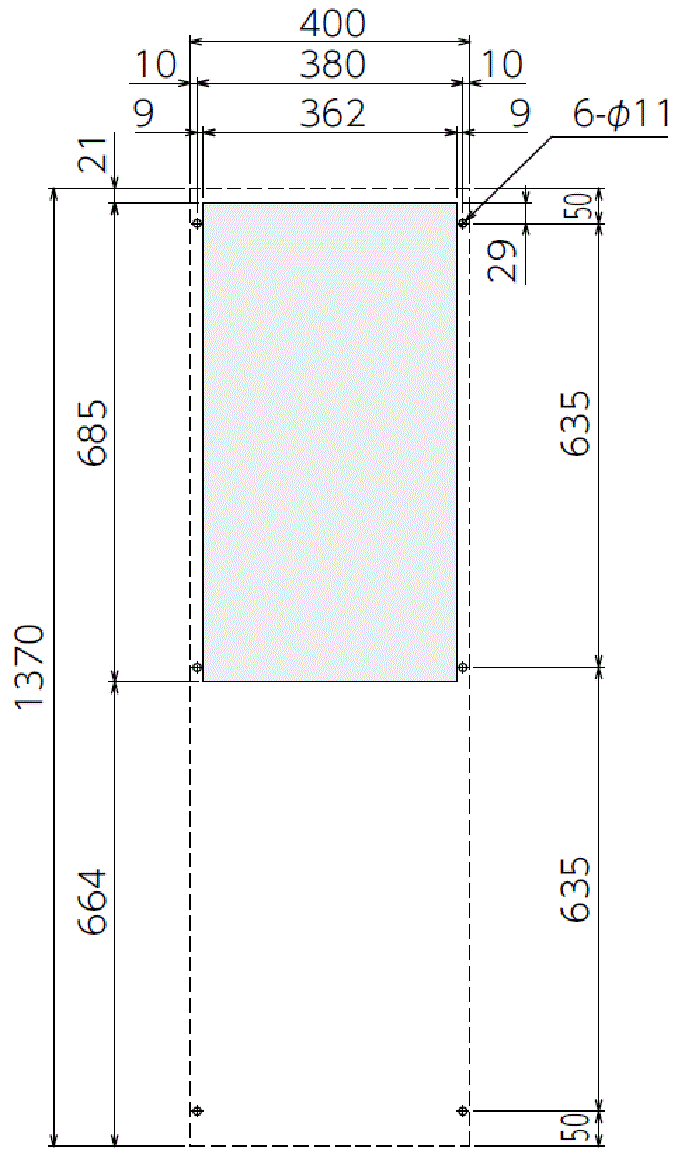

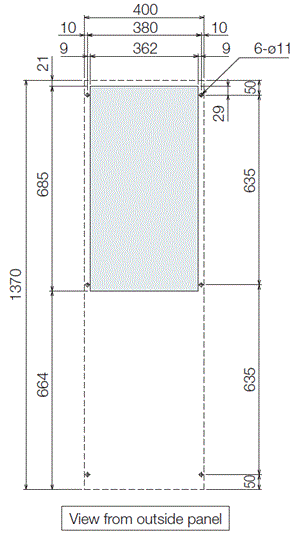

Installation dimensions

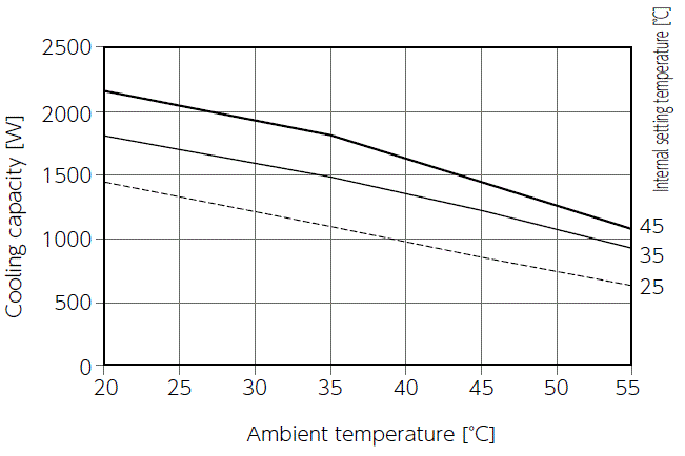

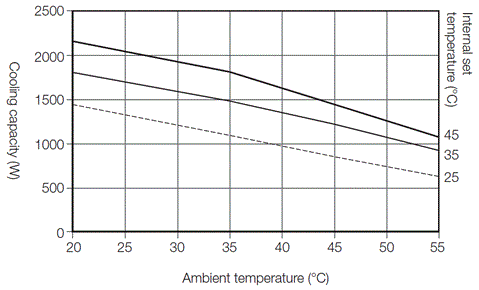

Capacity characteristic chart
【Note】
◯Please read the instruction manual before use and use it correctly.
◯Products will be delivered to the vehicle (designated domestic location, excluding remote islands).
◯ Depending on model and number of vehicles, a charter flight may be required (additional costs may apply).
◯For overseas delivery, we recommend separate overseas packaging.
○Please check specification of the FA cooler and install an appropriate circuit breaker (wiring circuit breaker) between the FA cooler and power supply.
◯Using the product outside rating power supply range may cause it to malfunction.
Please perform regular maintenance.
◯Failure to perform regular maintenance may result in deterioration of product performance or problems.
Do not operate the FA cooler continuously during low outdoor temperatures in winter.
When disposal of this product, please comply with all applicable laws and regulations and dispose of it appropriately.
