Drain evaporation processing unit
Drain evaporation processing unit
detail
Achieves a noise level of 40db (ENC-007A)
Conventional models have a motor inside the unit that splashes water, and the sound of the water hitting the inner wall of the unit increases noise levels, but by adopting a new method, we have achieved a noise level of 40db (ENC-007A), successfully reducing noise levels.
Various safety designs
The evaporation and heating heaters each have their own independent abnormally high temperature cutoff circuits, providing complete fire protection.
Furthermore, the main body has a double structure, which prevents the outer panel from becoming too hot.
The outlet hot air temperature is 5 to 10°C above the outside air temperature
Due to the structure of conventional drain evaporation units, the hot air coming out of the outlet tends to be very hot, but Apiste has solved this problem with a new method.
Overflow alarm output standard equipment
In the unlikely event that water that has not been completely evaporated is about to overflow from the main body, a dedicated water level sensor will detect the abnormality and immediately alarm output externally, providing a safe structure.
Turbulent heated air + electronically heated steam generation method
The fine evaporative airflow prevents steam from being seen coming from the outlet, and the area around the unit does not become flooded with condensation.
What is the turbulent heated air + electronically heated steam generation method?
First, drain water is vaporized by electronic heating (at this time, the vaporized steam has large particles that are prone to condensation), then the air heated by the sheath heater is vaporized in a turbulent flow, making the vapor particles finer and releasing them into the outside air. This is Apiste unique turbulent heated air + electronic heating vaporization method.
Specifications
| format | ENC-007A | ENC-014A | |
|---|---|---|---|
| Processing method | Turbulent heated air + electronically heated steam generation method | ||
| performance | Drain water treatment capacity (g/h) |
700 | 1400 |
| Use Area Temperature (℃) |
20～45 | ||
| use area Humidity (%RH) |
10 to 80 (no condensation) | ||
| appearance | External dimensions (H x W x D) (mm) |
370×333×162 | 419×335×200 |
| Weight(kg) | 10 | 12.2 | |
| power supply | Rated voltage(V) | Single-phase 200V AC | |
| current consumption (A) (MAX) |
4.3 (When drain is full) |
7.0 (When drain is full) |
|
| Starting current (A) | 4.5 | 7.5 | |
| power consumption (W) (MAX) |
850 | 1375 | |
| protection Features | Evaporator heater: Thermal fuse (128℃ OFF) Heating heater: Bimetal Thermostat (65℃ OFF) |
Evaporator heater: Thermal fuse (152℃ OFF) Heating heater: Bimetal Thermostat (65℃ OFF) |
|
| External output | Overflow warning output | ||
Included parts list
| name | quantity |
|---|---|
| Instruction manual | 1 book |
Dimensions

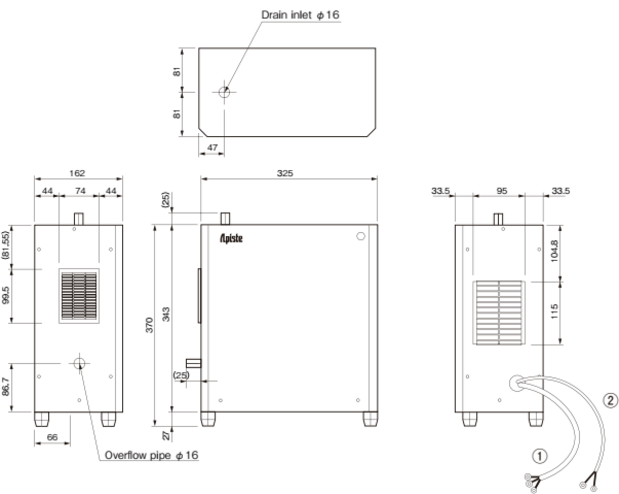

ENC-007A
① power supply line External length: 2m (VCT2.0 x 3 cores)
alarm output line External length: 2m (VCT0.75 x 2 cores)

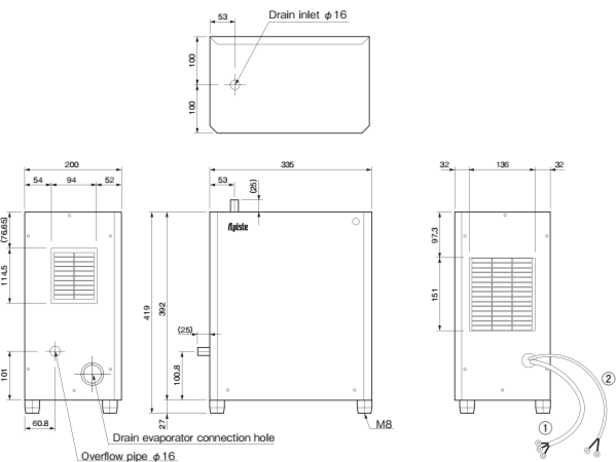

ENC-014A
① power supply line External length: 2m (VCT2.0 x 3 cores)
alarm output line External length: 2m (VCT0.75 x 2 cores)
