IoT interface "ENC Link"
IoT interface "ENC Link"
detail
Usage image
Features
Outputs 16 items of data
It can output 16 items, such as the temperature inside the panel and the set temperature, enabling predictive maintenance.
MC protocol compatible
Measurement data can be output to a PLC without the need for complex ladder programs.

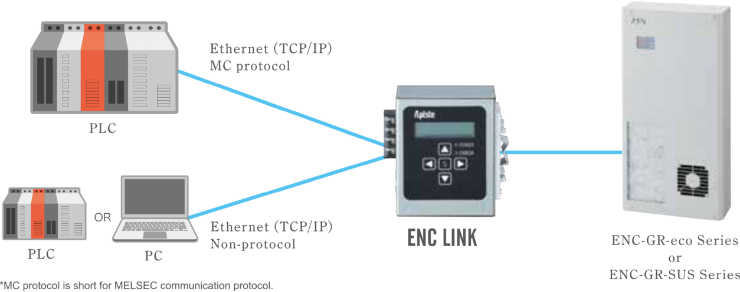

Connect two external devices with one unit
One ENC link can connect to two external devices simultaneously.
*One device can be connected using MC protocol communication and one device can be connected using non-protocol communication. If two devices are connected simultaneously, a separate hub or router is required.
Specifications
| name | ENC Link | ||
|---|---|---|---|
| Model | OP-9130007 | ||
| performance | Ambient temperature(℃) | 0～55 | |
| Ambient humidity(%RH) | 90 or less (no condensation) | ||
| appearance | External dimensions (H x W x D) (mm) *1 |
90 × 70 × 32 | |
| weight (g) | Approximately 250 | ||
| power supply | Rated voltage(V) | DC24±10% | |
| power consumption (W) | 2 | ||
| protection | Dust and water proof protection rating | IP30 | |
| Inter Face |
Ether net |
Communication Standards | 10BASE-T, 100BASE-TX |
| communication protocol |
TCP/IP | ||
| Communication method | MC protocol QnA compatible 3E frame (ASCII), no procedure | ||
| IP address | IPv4 | ||
| Display | Monochrome LCD display | RUN/Error | |
*1. Terminal block protrusions are excluded.
List of output items (No. indicates the order of output from the ENC link)
| No. | Output items | No. | Output items |
|---|---|---|---|
| 1 | Condenser fan 1 rotation speed (rpm) | 9 | U phase current value (1/10A) |
| 2 | Condenser fan 2 rotation speed (rpm) *1 | 10 | V-phase current value (1/10A) |
| 3 | Evaporation fan 1 rotation speed (rpm) | 11 | W phase current value (1/10A) |
| 4 | Evaporation fan 2 rotation speed (rpm) *2 | 12 | Error code 1 *3 |
| 5 | Evaporator temperature (℃) | 13 | Error code 2 *4 |
| 6 | Temperature inside the panel (℃) | 14 | Error code 3 *5 |
| 7 | Condenser temperature (℃) | 15 | Set temperature (℃) |
| 8 | Compressor rotation speed (rpm) | 16 | Model Name |
*1. Values will not be display for products with one condenser fan.
*2. Values will not be display for products with one evaporation fan.
*3. "Error Code 1" → display the most recent error that occurred.
*4. "Error Code 2" → display the error that occurred immediately before Error Code 1.
*5. "Error Code 3" → display the error that occurred immediately before Error Code 2.

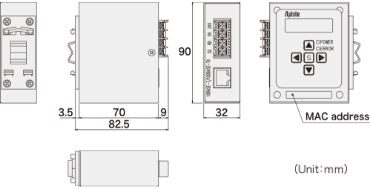

Dimensions
Installation method

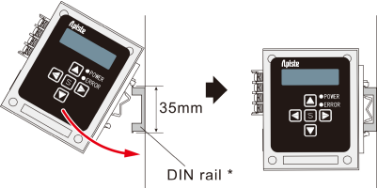

1. Mount this product on the DIN rail inside panel.
*Compatible DIN rail width: 35mm

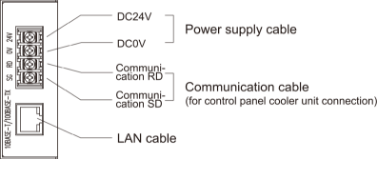

②Connect the power supply line, communication line, and LAN cable.
(Terminal block, fixed with M3 screws)
* power supply cords and LAN cables must be provided by the customer.
