Fluorocarbon special specification
ENC-NW2900L
| Cooling capacity(W)*1 | 2600／2900 |
|---|---|
| Rated voltage(V) | Three-phase 200V AC |
| Mounting Type | Side-mounting |
| External Dimensions(mm) | H1000×W400×D230 |
| Weight(kg) | 45 |
Inquiry
Download
ENC-NW2900L Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Side-mounting |
|---|---|
| Cooling capacity(W)*1 | 2600／2900 |
| Setting temperature range (℃) | 25～45 |
| Ambient temperature(℃) | 20～55 |
| Ambient humidity(%RH) | 10 to 80 (no condensation) |
| External Dimensions(mm) | H1000×W400×D230 |
| Weight(kg) | 45 |
| Coating Color | Munsell 5Y7/1 light beige equivalent |
| Rated voltage(V) | Three-phase 200V AC |
| Current consumption *3 : Rating(A) *4 | 4.0／3.5 |
| Current consumption *3 : Max(A) *5 | 4.5／4.3 |
| Starting current (A) | 31／30 |
| Power consumption *3 : Rating(W) *4 | 760／930 |
| Power consumption *3 : Max(W) *5 | 1040／1230 |
| Cooling water/temperature range (℃) | 10～40 |
| Cooling water/flow rate (ℓ/min) | 8 or more |
| Cooling water/pressure (Mpa) | 0.2～0.5 |
| Noise resistance | Fast transient/burst immunity test level 4 |
| Vibration resistance | Frequency: 5Hz Total amplitude: 20mm |
| Dust and water proof protection rating | Equivalent to IP54 (internal circulation route) |
| Refrigerant / Amount(g) | R134a 220g |
| Noise (dB(A)) | Approximately 63/65 |
| External output | alarm output (non-voltage a contact: 250V 2A resistive load) |
| Display | Panel temperature/Error display LED/RUN LED |
Note)
cooling capacity: Outside temperature 35℃, inside temperature 35℃-40℃, water temperature 25℃,
This is capacity when the water supply rate is 8 liters/min.
(Measurement conditions: JIS-B-8615 air enthalpy method)
MAX value: Value when Use Area Temperature is the maximum allowable ambient temperature, use area Humidity 40% RH, and the water temperature is 40°C.
- Use power-supply voltage within ±10% of rated voltage.
- Be sure to read the instruction manual carefully before use and use it correctly.

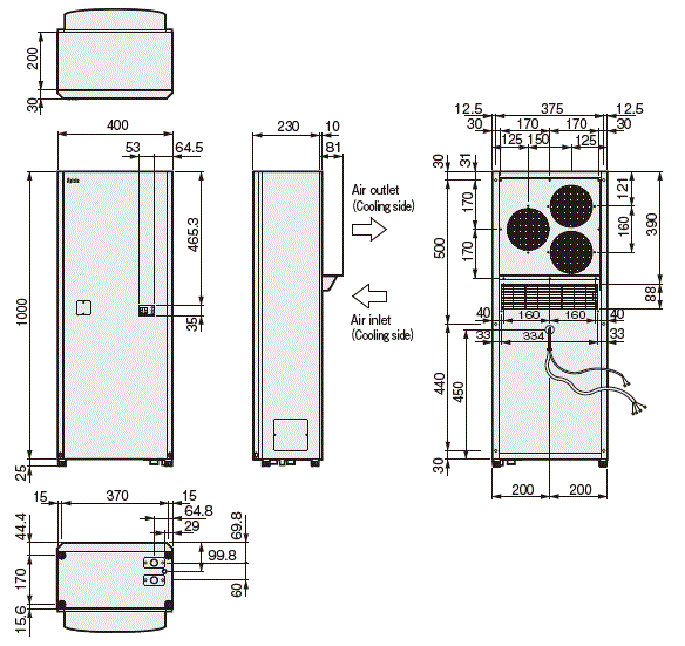

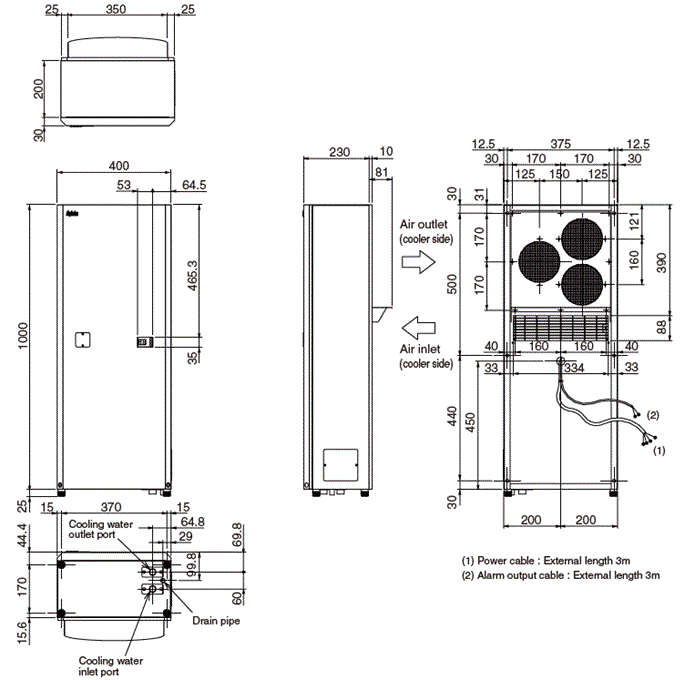

External dimensions
Diagram of Panel Cutout

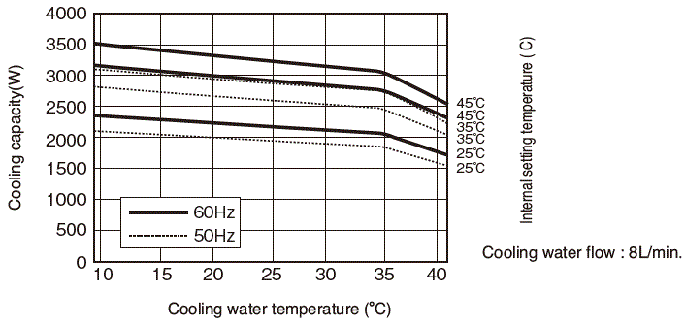

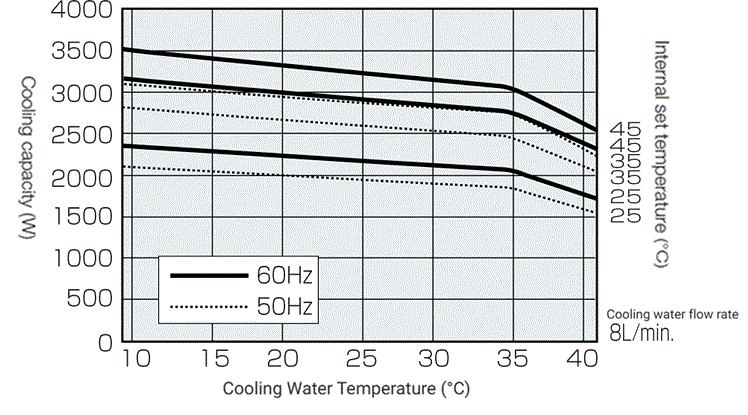

Capacity characteristics graph
*If you plan to use the FA cooler in environment close to the upper limit of the allowable ambient temperature, please consult with our sales representative.
【Note】
◯Please be sure to read the instruction manual before use.
Please note that cooling capacity of cooler will vary depending on the heat load inside the panel.
○Please turn off power supply to the FA cooler when the outside temperature is low in winter.
◯Do not set the temperature lower than the outside temperature unnecessarily.
Check specification of the FA cooler and be sure to install an appropriate breaker (commercially available) between the FA cooler and power supply.
