Control panel cooling unit ENC-NW2200L
Control Panel Cooling unit
Freon-gas Special specifications
Side-mounting
ENC-NW2200L
ENC Series
There is no external heat dissipation fan or intake filter, which allow the maintenance man-hours to be reduced greatly.
- Freon-gas
- Special specifications
| Cooling capacity(W) | 2000/2200 |
|---|---|
| Rated Voltage(V) | Three-phase 200V AC |
| Mounting type | Side-mounting |
| External dimensions(mm) | H1000×W400×D230 |
| Weight(kg) | 43 |
Product Details for ENC-NW2200L
Specifications
(50／60Hz)
| Mounting type | Side-mounting |
|---|---|
| Cooling capacity(W) | 2000/2200 |
| Setting temperature range(℃) | 25 to 45 |
| Ambient Temperature(℃) | 20 to 55 |
| Ambient Humidity(%RH) | 10～80 (No condensation) |
| Dimensions(mm) | H1000×W400×D230 |
| Weight(kg) | 43 |
| Coating Color | Munsell 5Y 7/1 Equivalent color of light beige |
| Rated voltage(V) | Three-phase 200V AC |
| Current consumption : Rating(A) | 3.0/2.5 |
| Current consumption : Max(A) | 3.3/3.0 |
| Starting Current(A) | 31/30 |
| Power consumption : Rating(W) | 490／570 |
| Power consumption : Max(W) | 690/810 |
| Cooling water / Temperature range (℃) | 10～40 |
| Cooling water / Flow rate (ℓ/min) | 8 |
| Cooling water / Pressure (Mpa) | 0.2～0.5 |
| Noise Resistance | LEVEL4 by Fast Transient / Burst Immunity Test |
| Vibration resistance | 5Hz frequency 20mm total amplitude |
| Refrigerant / Amount(g) | R134a 200g |
| Noise (dB (A)) | Approx. 62/62 |
| External output | Alarm output (No-voltage/normal open: resistive load 250V 2A) |
| Display | Internal temperature/Error display LED/RUN LED |
Note）
Cooling capacity : Rated capacity value when external temperature is 35°C, internal temperature is 35°C-40％, Cooling water inlet temperature 35 ℃, supply water amount 8 ℓ / min. (measurement conditions:JIS-B-8615 air enthalpy method)）
MAX value: use area temperature at the maximum use area temperature allowed, use area humidity of 40%RH.
Use the product keeping the use power supply and voltage; within ±10% of rated power supply and rated voltage.
Reading an instruction manual well certainly before use and please use it right.

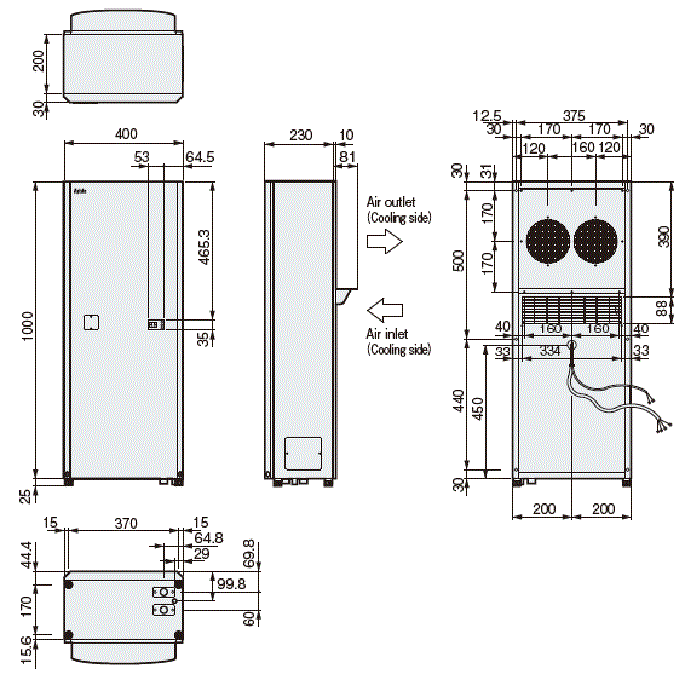

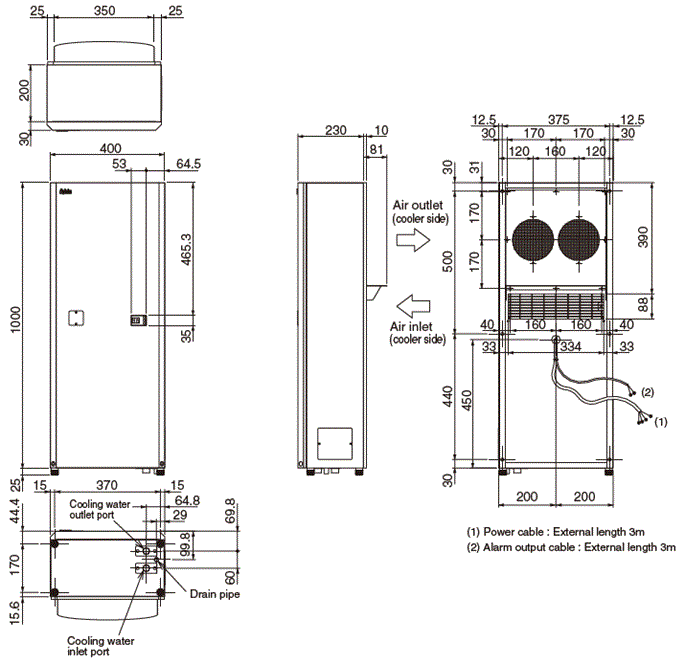

External dimensions

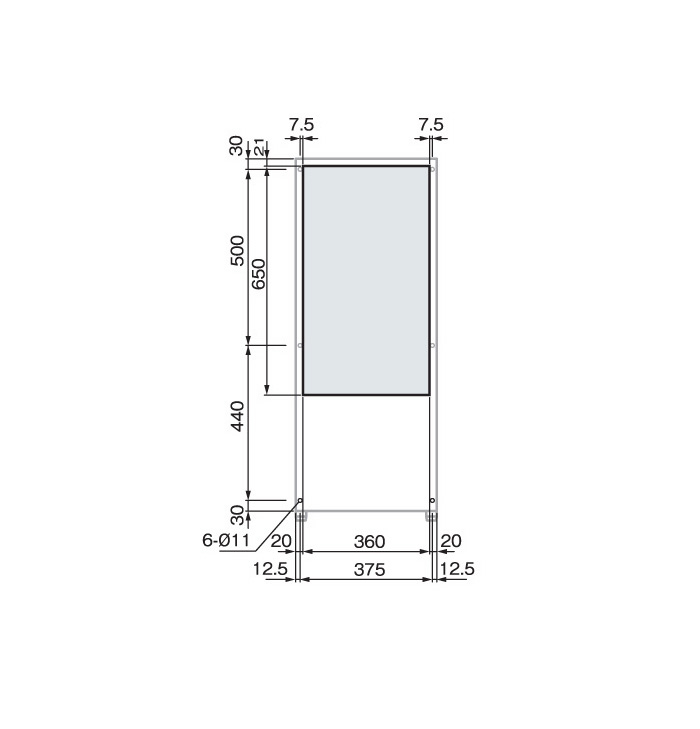

Diagram of Panel Cutout

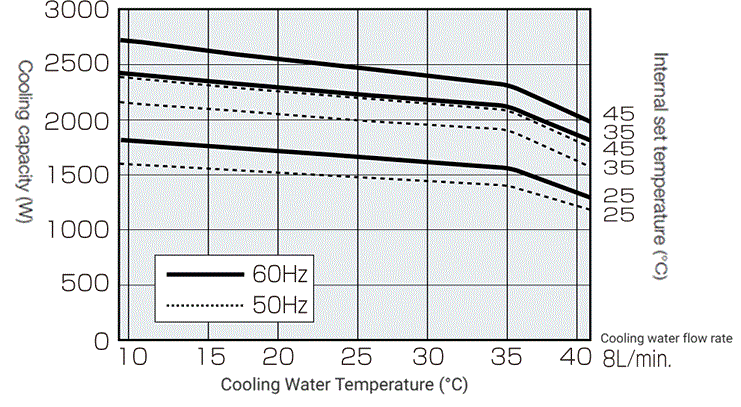

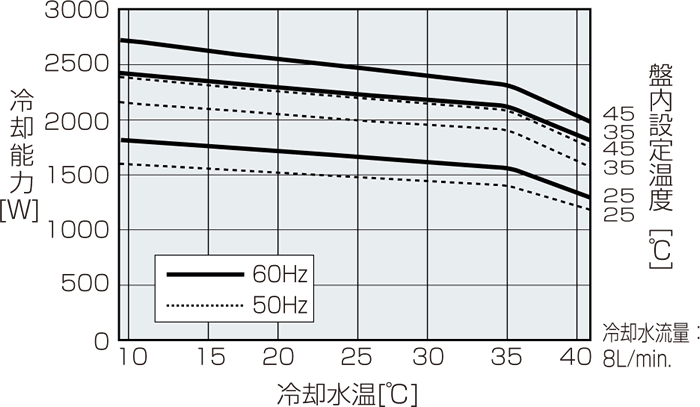

Capacity characteristic chart
*Contact our sales representative if you are using the control panel cooler in an environment close to the permissible ambient temperature upper limit.
[Caution]
To ensure proper operation of this equipment, read the operation manual before use.
Note that the cooling capacity of the cooler varies depending on the heating load inside the board.
During winter, turn off the FA cooler when the temperature outside is low.
Do not set the temperature lower than the outside air more than is necessary.
After checking the specifications of the FA cooler, be sure to use the appropriate breaker (sold commercially) between the FA cooler and the power supply.
