Fluorocarbon special specification
ENC-G2240L
| Cooling capacity(W)*1 | 2000／2200 |
|---|---|
| Rated voltage(V) | Three-phase 380 to 415V AC/400 to 460V AC |
| Mounting Type | Side-mounting |
| External Dimensions(mm) | H1200×W450×D260 |
| Weight(kg) | 62 |
Inquiry
Download
ENC-G2240L Product details
Specifications
See specification in the catalogue(50/60Hz)
| Mounting Type | Side-mounting |
|---|---|
| Cooling capacity(W)*1 | 2000／2200 |
| Setting temperature range (℃) | 25～45 |
| Ambient temperature(℃) | 20～55 |
| Ambient humidity(%RH) | 10～85 (No condensation) |
| External Dimensions(mm) | H1200×W450×D260 |
| Weight(kg) | 62 |
| Coating Color | Munsell 5Y7/1 light beige equivalent |
| Rated voltage(V) | Three-phase 380 to 415V AC/400 to 460V AC |
| Current consumption *3 : Rating(A) *4 | 1.7／1.9 |
| Current consumption *3 : Max(A) *5 | 2.2／2.5 |
| Starting current (A) | December 13 |
| Power consumption *3 : Rating(W) *4 | 1000／1200 |
| Power consumption *3 : Max(W) *5 | 1350／1700 |
| Noise resistance | Fast transient/burst immunity test level 4 |
| Vibration resistance | Equivalent to JIS Z 0200 Level1 |
| Dust and water proof protection rating | Equivalent to IP54 (internal circulation route) |
| Refrigerant / Amount(g) | R134a 300g |
| Noise (dB(A)) | Approximately 65/67 |
| External output | alarm output (non-voltage contact: 250V 2A resistive load) |
| Display | Internal temperature/error display LED RUN LED |
Note)
cooling capacity: rating capacity value when outside temperature is 35°C and internal temperature setting is 35°C - 40%. (Measurement conditions: JIS-C-9612 air enthalpy method)
Use Area Temperature and humidity conditions for use area Humidity are not guaranteed to be met.
rating: Value when Use Area Temperature 35°C and use area Humidity 40% RH.
MAX value: The value when Use Area Temperature is the maximum allowable ambient temperature and use area Humidity is 40% RH.
- Use power-supply voltage within ±10% of rated voltage.
- Be sure to read the instruction manual carefully before use and use it correctly.

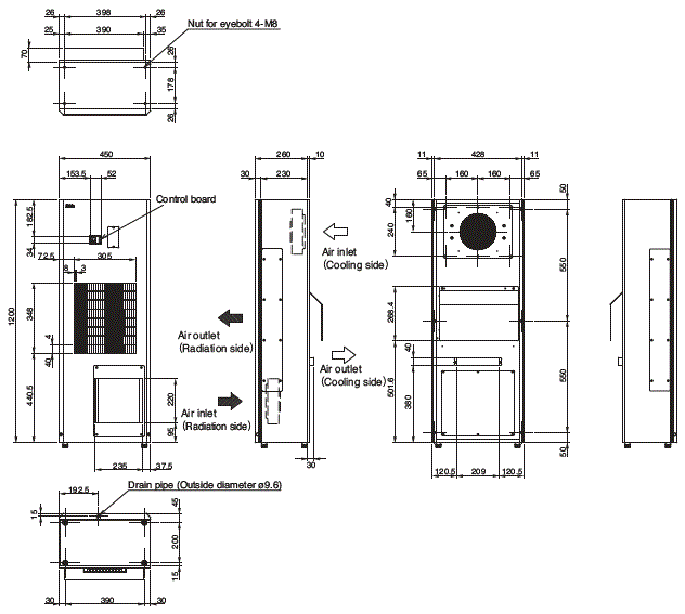

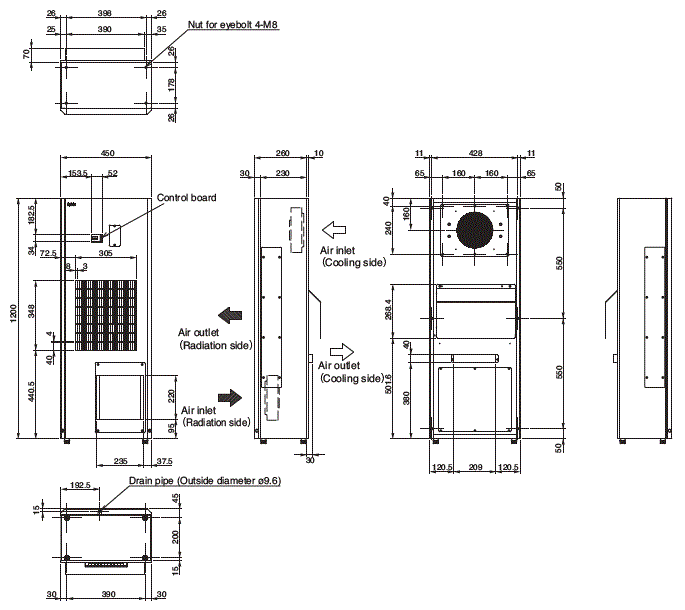

External dimensions

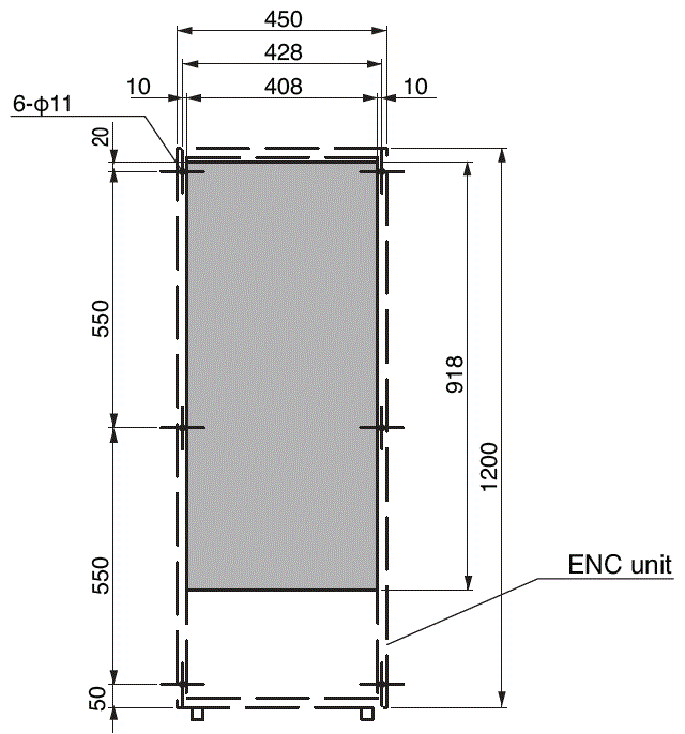

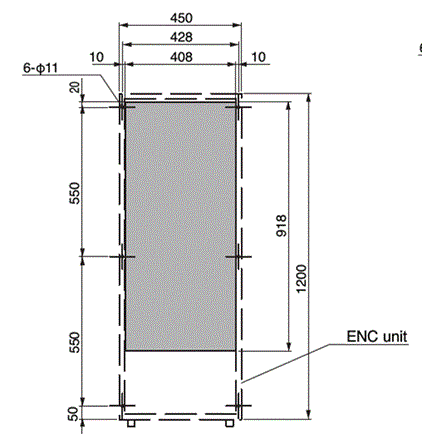

Diagram of Panel Cutout

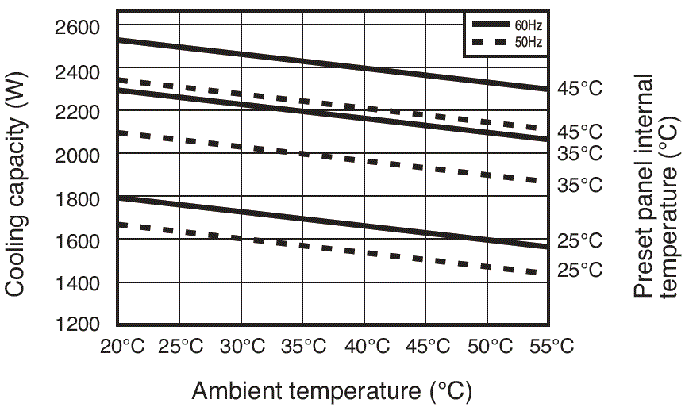

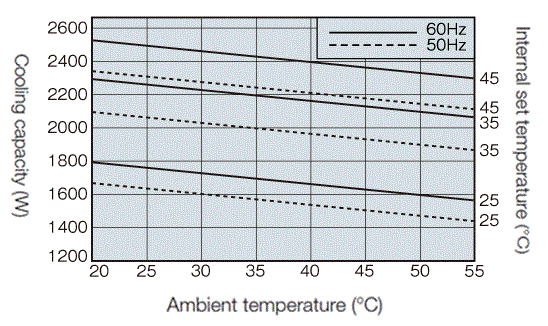

Capacity characteristics graph
*If you plan to use the FA cooler in environment close to the upper limit of the allowable ambient temperature, please consult with our sales representative.
[Caution]
To ensure proper operation of this equipment, read the operation manual before use.
Depending on model and quantity, separate charter delivery may be arranged (additional costs apply).
Overseas at the time of delivery, we recommend packing for overseas separately.
Please check through the cooler between the FA and the power (circuit breakers) to the appropriate specification of the FA breaker cooler.
Cause of failure and be used at the rated power supply out of range.
Please use the service and maintenance on a regular basis.
Failure to maintain regular maintenance, you may be a factor in product performance degradation trouble.
When the outside temperature is low in winter, please do not let the FA cooler continuous operation.
When disposing of this product, you should comply with various laws and regulations, please go to the appropriate.
