Control panel heat exchangers ENH-117L-230
Control panel heat exchangers
Heat-pipe
Inside side-mount
ENH-117L-230
ENH Series
Slim design with a depth of 70 mm running on 230 V.
- Heat-pipe
| Rated capacity(W/K) | 15/18 |
|---|---|
| Rated Voltage(V) | Single-phase AC230 |
| Mounting type | Inside side-mount |
| External dimensions(mm) | H426×W177×D70 |
| Weight(kg) | 4 |
Product Details for ENH-117L-230
Specifications
| Mount type | Inside side-mount |
|---|---|
| cooling method | Super heat conduction tube method (heat pipe) Completely non-CFC (use pure water) |
| Rated capacity (W/K) | 15／18 |
| Use Area Temperature (°C) | 0～60 or less |
| Use Area Humidity (%RH) | 10～85 (No condensation) |
| External dimensions (mm) | H426×W177×D70 |
| Weight (kg) | 4 |
| Coating Color | Hot-dip galvanized steel sheet / unpainted |
| Rated Voltage (V) | Single-phase AC230 |
| Consumption Current (A) | 0.14/0.12 (MAX) |
| Restraint current (A) | 0.16/0.14 (MAX) |
| Consumption wattage (W) | 27/24 (MAX) |
| Certification | CE / |
Note: Rated capacity: Heat exchange capacity when the temperature difference inside and outside the panel is 20K.
Attached parts list
| Protect cover | 1 |
|---|---|
| filter | 1 |

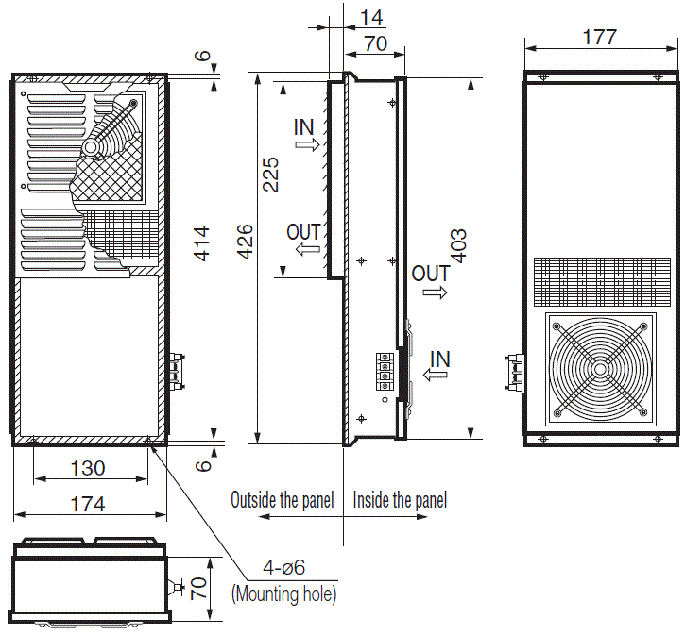

External dimensions

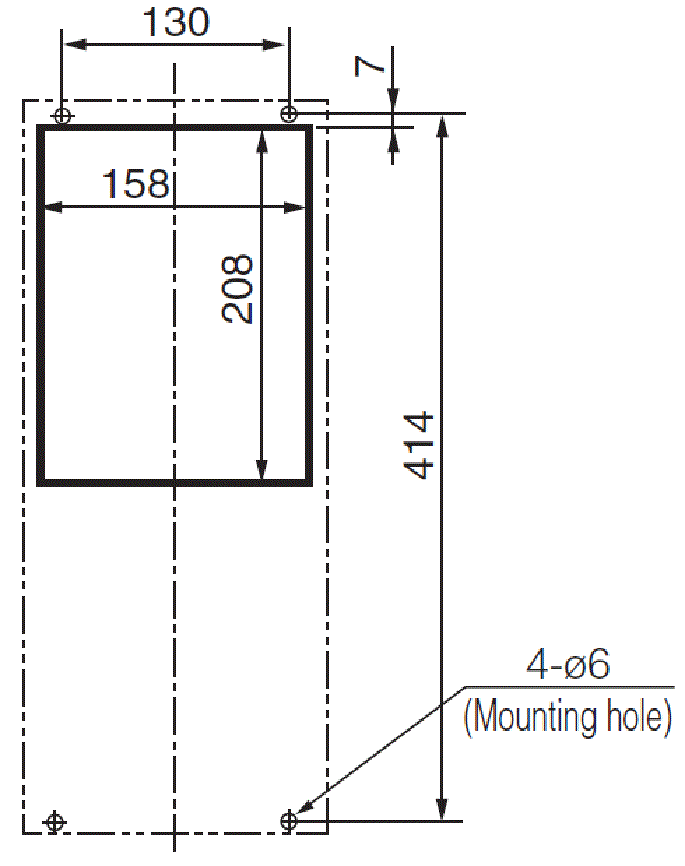

Diagram of Panel Cutout
*Figure seen from control board outside.
*Please keep screw pace on the occasion of processing.
*Standard panel cut will not be changed even if a model change is carried out (some exceptions apply).
[Caution]
To ensure proper operation of this equipment, read the operation manual before use.
Depending on model and quantity, separate charter delivery may be arranged (additional costs apply).
Overseas at the time of delivery, we recommend packing for overseas separately.
Cause of failure and be used at the rated power supply out of range.
Secure the front cover with a tightening torque of 4.9 to 7.4 Ncｍ.
Please use the service and maintenance on a regular basis.
Failure to maintain regular maintenance, you may be a factor in product performance degradation trouble.
The heat pipe may rupture when it is heated to a temperature of 200 ℃ or higher. Do not throw it into a fire.
When disposing, make a notch on a part of the heat pipe.
