Case studies

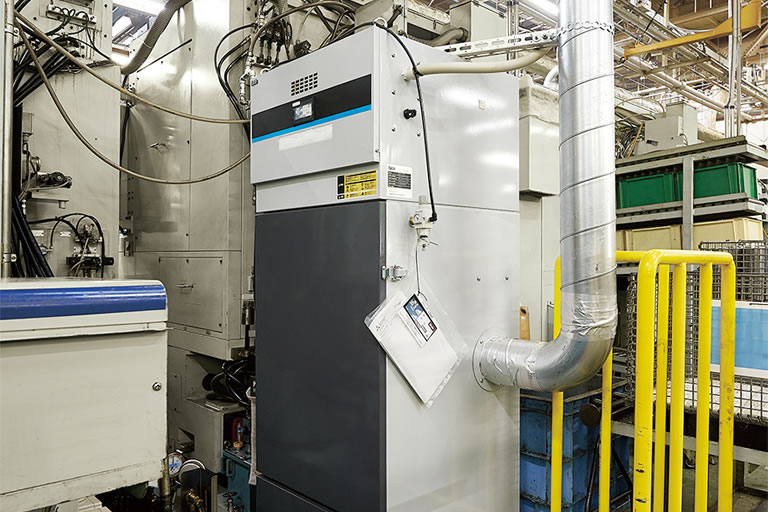

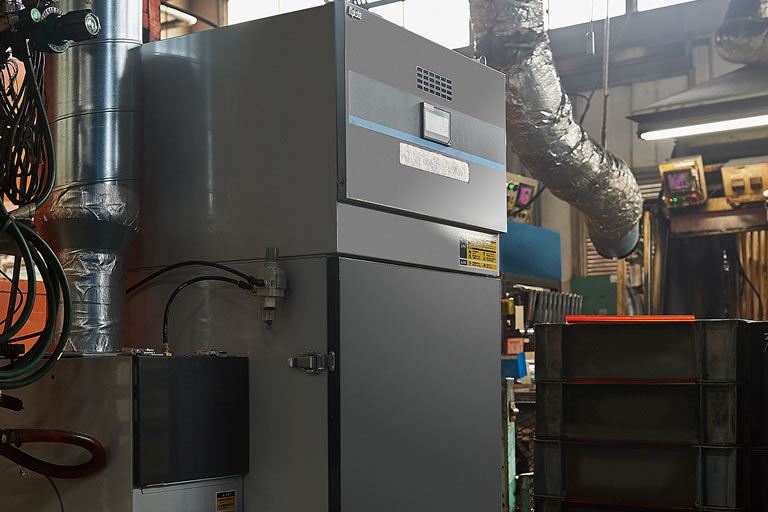

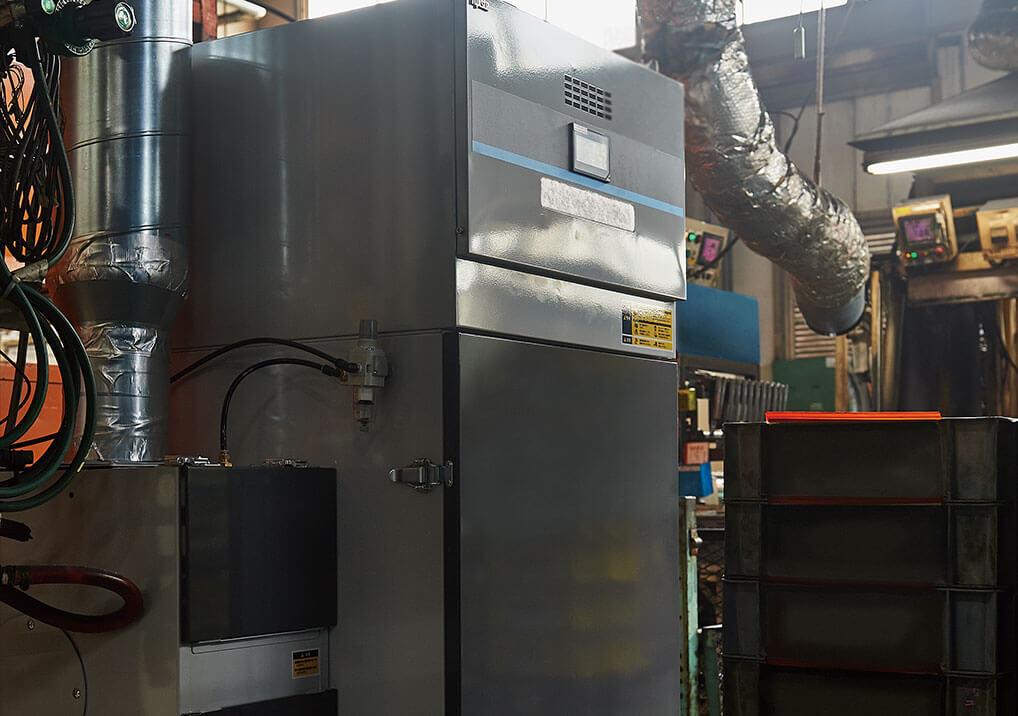

Collecting dust generated when polishing workpieces
The company adopted the GDE-A series dust collector when it was time to replace its aging dust collector collector. The unique inverter-based automatic airflow control function allows stable collection of dust and fumes generated during polishing at a preset airflow, which has been well-received.

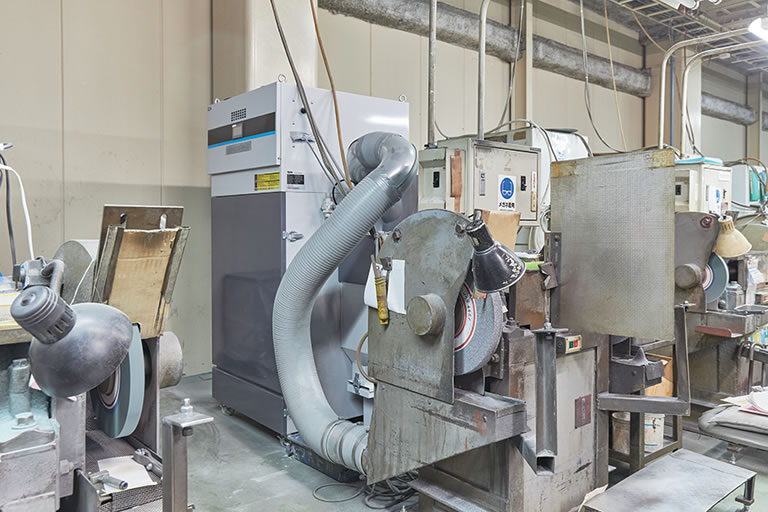

Polishing machine dust collection
A customer who was having trouble with their existing dust collection equipment failing due to clogging filter caused by dust particles adopted the GDE-A series dust collector, which has the advantage of not requiring filter replacement for a long period of time. The customer is very satisfied with the significant reduction in the frequency of filter replacement.

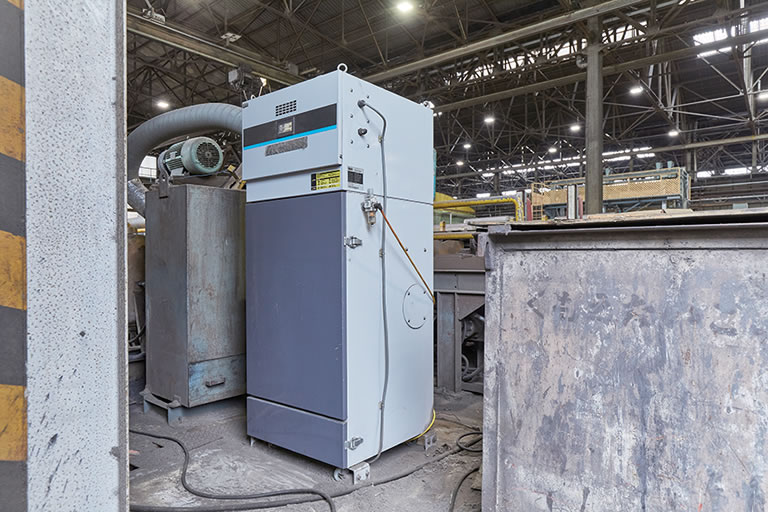

fumes collection during arc welding
The dust collector GDE-A series was adopted by a customer who was troubled by the scattering of fumes generated during arc welding. fumes Since clogging is sticky and of filter is accelerated, we proposed to install fumes BOX of option, automatically supply filtration aid, and use filter clogging in a suppressed form. Now when we install a new arc welder, the GDE-A series is also installed as a set.
Dust collection during dry cutting
A customer troubled by the dust dispersion generated during dry cutting has adopted the dust collector GDE-A series. The filter, made with a fiber diameter of only a few hundred nanometers, was highly evaluated for its ability to significantly reduce the frequency of maintenance. The inverter is equipped with an inverter that automatically adjusts the air volume according to the required air volume, eliminating the need to adjust the damper, which was previously necessary.
application

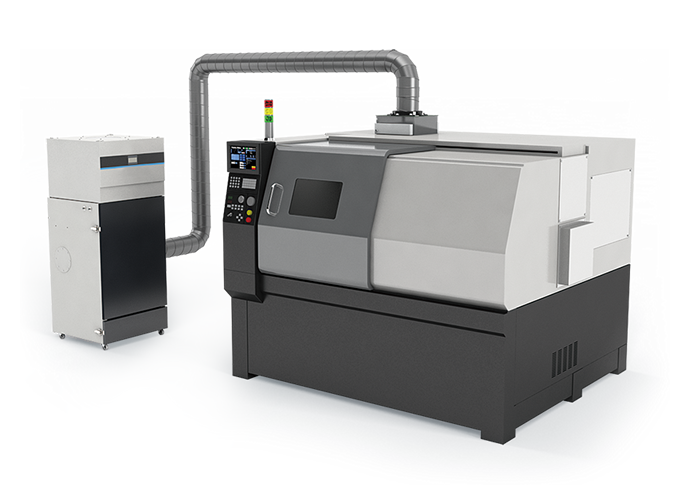

Grinding process
This product is used to collect dust in the grinding process. The image shows an example where the equipment and dust collector are directly connected by a duct. By using an external operation input and linking the equipment and operation, it is possible to collect dust only while working, achieving energy savings.

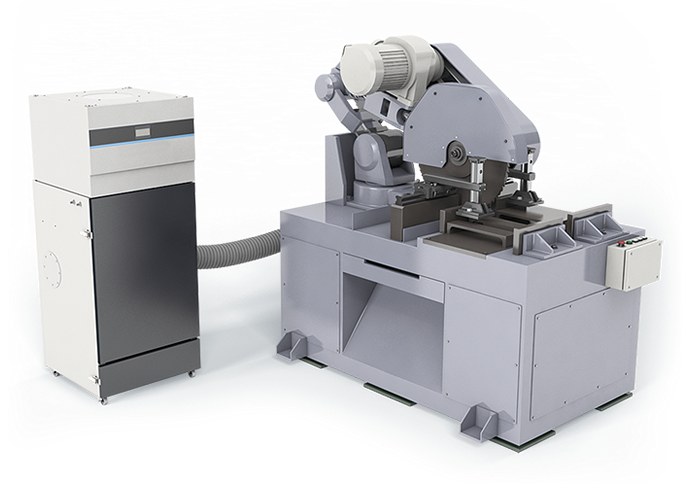

Cutting process
It is used to collect dust during the cutting process. The image shows an example where a dust collector duct is connected to the hood attached to a cutting machine. The GDE-A series can adjust the air volume using inverter control. By suctioning only the amount needed, energy savings and a longer filter life are achieved.

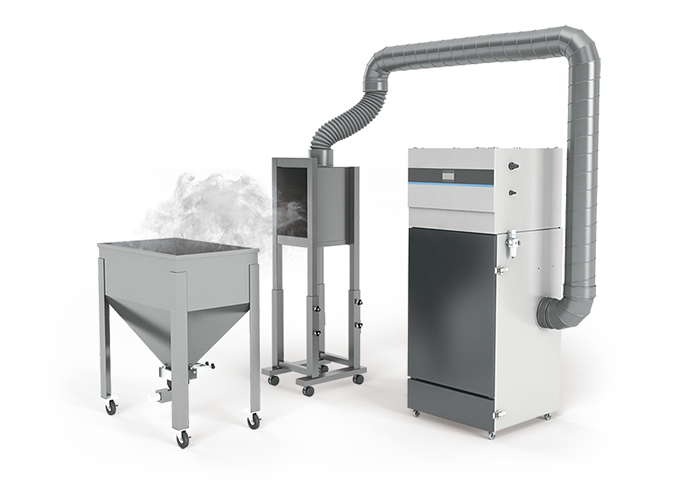

Material input
This product is used to prevent dust from flying around when materials are fed in. The image shows an example of suction using an external hood attached to the side of the feed opening. The GDE-A series can adjust the air volume using inverter control. By suctioning at the optimal air volume, excessive suction of materials can also be prevented.

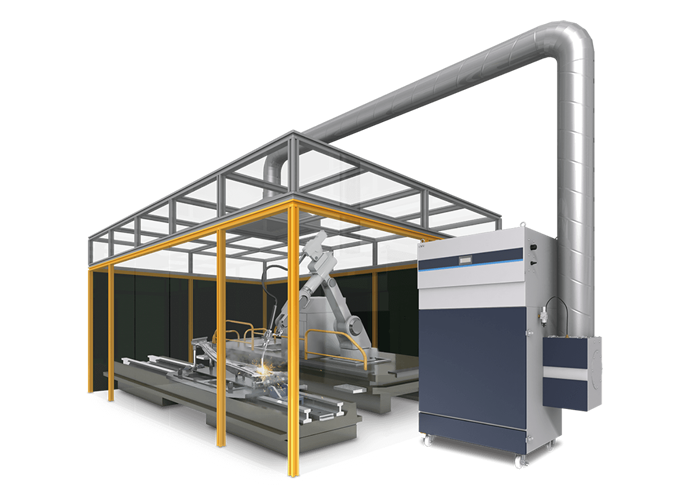

Automatic welding machine
It is used to collect fumes generated by automatic welding machines. The image shows an example where a hood is installed above the welding booth, enclosing the entire booth and suctioning. By enclosing the area around the booth, effective dust collection is possible even at robot welding sites.

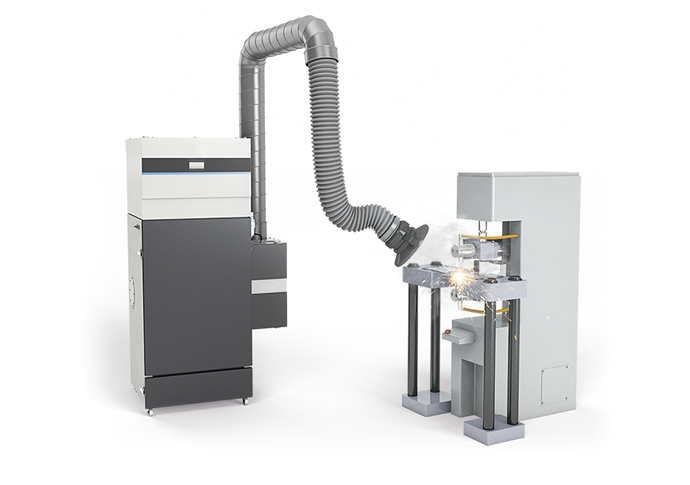

Welding work
It is used to capture fumes generated during welding work. The image shows an example where a flexible duct is connected to dust collector collector and suction is performed from near the dust source. The ultra-fine filter has a fine mesh, making it suitable for capturing welding fumes with fine particle size.

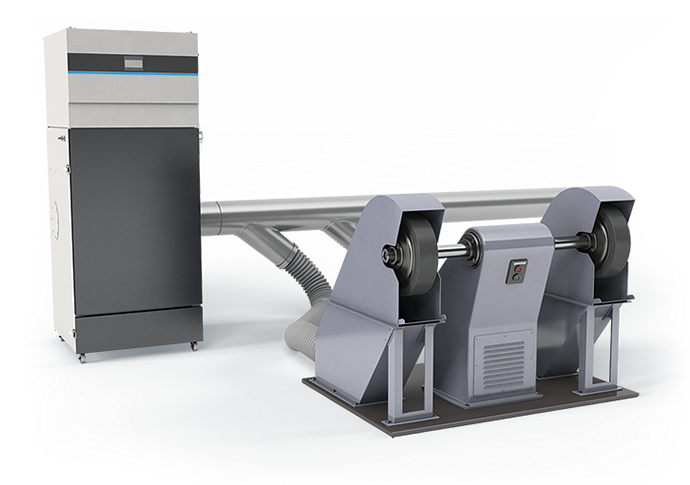

Polishing process
It is used to collect dust generated during the polishing process. The image shows an example where dust collector duct is connected to the hood attached to the polishing machine. The GDE-A series can adjust the air volume using inverter control. By suctioning only the amount of dust needed, energy savings and a longer filter life are achieved.

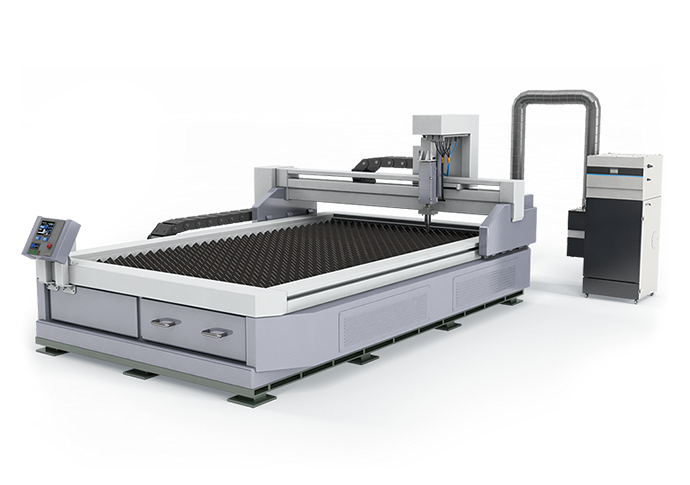

Laser Plasma Processing
fumes is used for collection of generated by laser and plasma processing. The illustration shows an example of ducting from the dust collector connection port on a processing machine to dust collector. Ultrafine filter is also suitable for the collection of welding fumes with fine grain size because of its fine grain size.

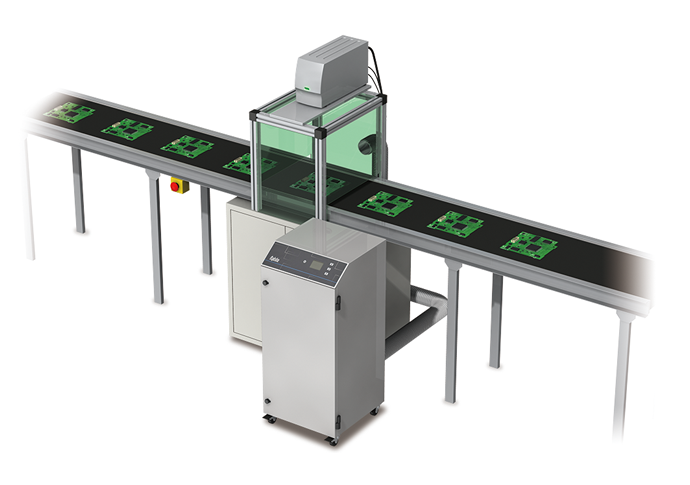

Laser marker (inline)
This product is used to collect fumes generated by laser marking. In this example, a laser window installed in a laser marking line is connected to dust collector via a duct. The GDE-H series is a high-pressure type, so it can be safely used even with a narrow duct diameter.
