Precision air conditioners (TCU/ECU)
Temperature control
PAU-GR300SE
| Air outlet volume(m3 /min) | 1.2 (Normal mode) |
|---|---|
| Cooling capacity(W)*1 | 315（430） |
| Thermal capacity(W) | 250 |
| Rated voltage(V) | Single-phase, 100 to 120 VAC |
| Control models | Temperature control |
| External Dimensions(mm) | H500×W350×D400 |
| Weight(kg) | 32 |
Inquiry
Download
Product Details for PAU-GR300SE
Specifications
| Cooling method | Air-cooling type |
|---|---|
| Control models | Temperature control |
| Cooling capacity(W)*1 | 315（430） |
| Heating capacity(W)*2 | 250 |
| Dehumidifying capacity(g/㎏(DA))*3 | 6.65 |
| Temperature control precision(℃)*4 | ±0.1 |
| Temperature control range(℃)*5 | 20 to 30 |
| Temperature setting range(℃)*6 | 0 to 50 |
| Ambient temperature(℃) | 20 to 35 (Temperature change gradient: Within 1℃/1h) |
| Ambient humidity(%RH) | 15 to 85 (Humidity change gradient: within 5%RH/1h) (No condensation) |
| Blowoff air volume of main unit(m3/min)*7 | 1.2 (Normal mode / Energy saving mode)
0.8 (Dry mode) |
| External Dimensions(mm)*8 | H500×W350×D400 |
| Weight(kg) | 32 |
| Coating Color | Munsell N-87 Equivalent color of gray |
| Blower duct connection diameter(mm) | φ75 |
| Rated voltage(V)*9 | Single-phase, 100 to 120 VAC |
| Current consumption(A)*10 | 3.2(Rated) 4.4(MAX) |
| Power consumption(W)*10 | 275(Rated) 380(MAX) |
| Drain connection diameter | φ9.5 (3/8) |
| Refrigerant(g) | R1234yf 150g |
| Exhaust air volume(m3/min)*11 | 3.7 |
| Noise (dB (A))*12 | 58 |
| Protective functions/Main circuit | Abnormal voltage detection |
| Protective functions/Fan | Abnormal RPM detection, Residual operation after stop |
| Protective functions/Compressor *9 | Inverter power release,Cooler freezing prevention,High-pressure side high temperature error,Abnormal RPM detection |
| Input/output/operation stop input | No-voltage input (control board connector) |
| Input/output/Ethernet/Communication standard | 10BASE-T/100BASE-TX |
| Input/Output/Ethernet/Communication protocol | Modbus/TCP |
| Display/operation method | Monochrome LCD, key input |
| Functions | Operation mode switching, Air flow adjustment, Equipment operation status display, Error log display, Temperature/humidity upper/lower limit alarm setting, Key lock, Freezing prevention operation |
*1 Cooling capacity is based on use with an ambient temperature/humidity of 25°C/50% RH at the end of a 2-meter duct.
The cooling capacity in parentheses ( ) is based on use with an ambient temperature/humidity of 30°C/70% RH at the
end of a 2-meter duct.
*2 Heating capacity is based on use with an ambient temperature/humidity of 25°C/50% RH at the end of a 2-meter duct.
*3 Dehumidification capacity is based on use with an ambient temperature/humidity of 30°C/70% RH at the end of a 2-meter duct in dry mode.
*4 Temperature control precision is based on the method prescribed in JTM K01 Constant Temperature and Humidity
Chambers - Performance Testing Method and Performance Indication Method (Japan Testing Machine Association).
Only the value indicated by the temperature controller built into the air conditioner at the main unit air outlet is
guaranteed to be precise, and thermal interference due to the duct, etc. is not covered by the precision guarantee.
In addition, this product is designed to reduce temperature fluctuations in the air, so the absolute temperature value is not guaranteed.
(A bias function for compensation is built into the system.)
*5 Temperature control may not be possible even within the set temperature control range depending on the ambient temperature/humidity.
*6 Control at the set value may not be possible depending on the operating environment.
*7 Use of an auxiliary fan is recommended to secure the blowoff air volume at the duct in situations with significant
pressure loss due to a long duct, etc.
*8 Dimensions do not include control panel protrusions, blowout flanges, and casters and their mounting areas.
*9 Use a power supply voltage within ±10% of the rated voltage.
*10 The current consumption and power consumption fluctuate depending on the ambient temperature/humidity and
the operating conditions.
*11 Waste heat is discharged from air-cooled systems. (An optional exhaust chamber is available.)
*12 Values measured at a distance of 1 meter from the front of the device.
・Refer to the specifications and precautions in the instruction manual during actual installation.
・Please note that product specifications are subject to change without notice.

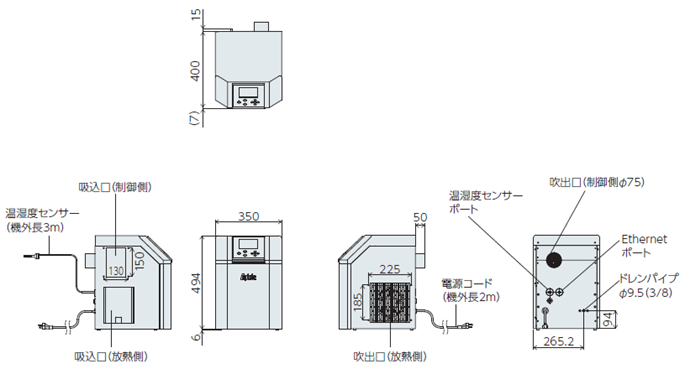

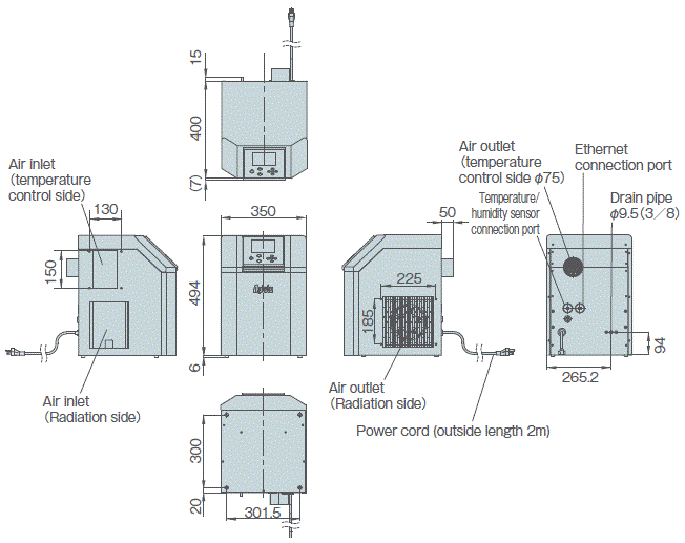

External dimensions

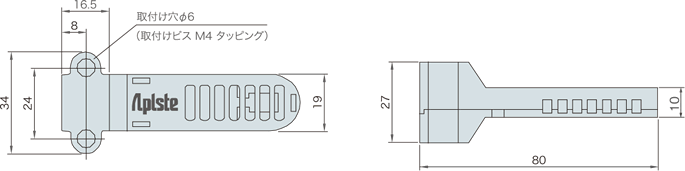

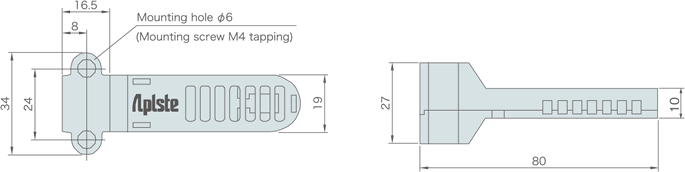

Temperature and humidity sensor dimensions
Note
◯Please read the instruction manual before use and use it correctly.
◯Products will be delivered to the vehicle (designated domestic locations, excluding remote islands).
◯ Depending on model and number of vehicles, a charter flight may be required (additional costs may apply).
◯For overseas delivery, we recommend separate overseas packaging.
○If you would like to arrange for a meeting to be held, please contact us separately.
◯Please check specification and install an appropriate circuit breaker (wiring circuit breaker) between this product and power supply.
◯Using the product outside rating power supply range may cause it to malfunction.
Please perform regular maintenance.
◯Failure to perform regular maintenance may result in deterioration of product performance or problems.
When disposal of this product, please comply with all applicable laws and regulations and dispose of it appropriately.
