option
option
PCU-NE series

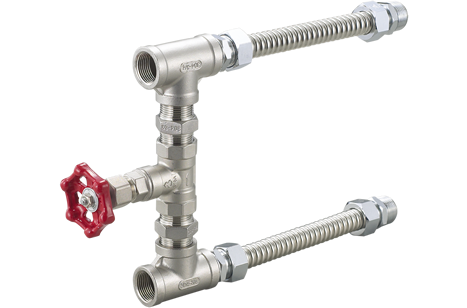

circulating water Bypass Kit
For PCU-NE1500

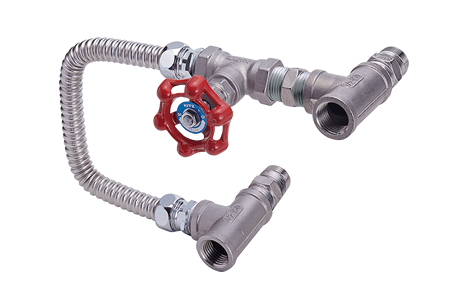

circulating water Bypass Kit
For PCU-NE6000
PCU-SL series

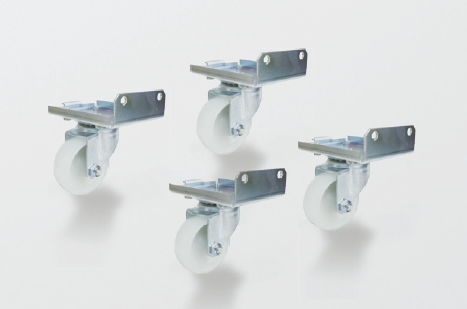

Caster Unit

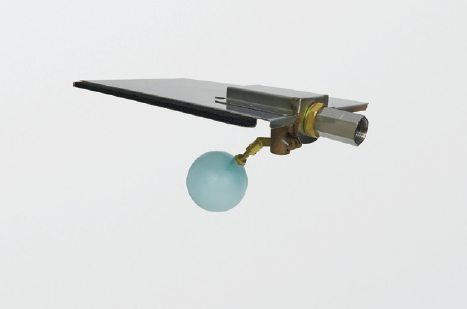

Automatic Water Supply Unit

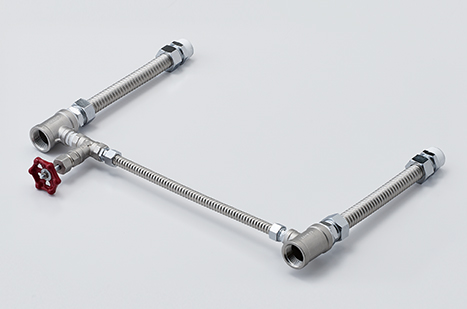

Circulating water bypass kit
PCU-R series

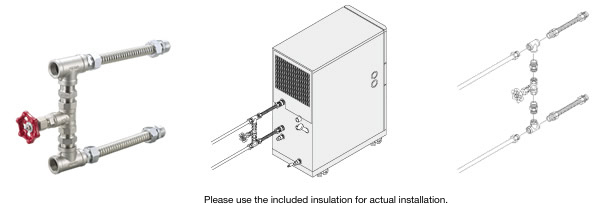

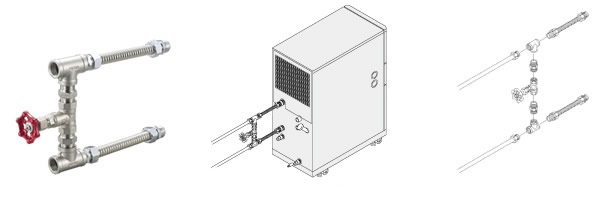

circulating water Bypass Kit PCU-P002
This kit is used when the circulating water flow rate is below the rating flow rate. If the circulating water flow rate is below the rating flow rate, cooling capacity of the chiller unit may decrease.
Kit contents
| Flexible Tube | 2 | nipple | 2 |
|---|---|---|---|
| Small nipples x 2 | 2 | Insulok | 10 |
| 2 x packing | 2 | Sealing tape | 1 |
| cheese | 2 | insulation | 3 |
| Globe valve | 1 | Manuals | 1 |
Usage notes
- Tighten with the recommended torque of 40 to 45 Nm.
- Wrap the sealing tape clockwise.
- Install the water piping beyond the bypass kit before turning on the PCU power supply.
- If any malfunctions such as water leakage occur, stop using the product immediately.

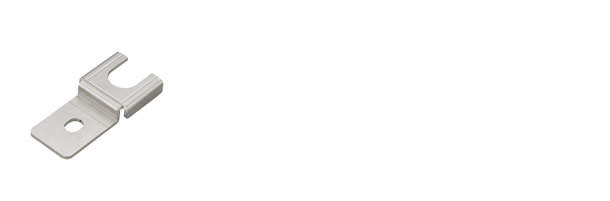

Anti-tip bracket PCU-P001
This is a fixing blanket for use on site. It helps prevent falls.
| Model name | A | B | C |
|---|---|---|---|
| PCU-1600R PCU-W1800R |
541.5 | 276 | 398 |
| PCU-3300R PCU-6300R PCU-W3600R PCU-W6600R PCU-W9100R |
571.5 | 316 | 438 |

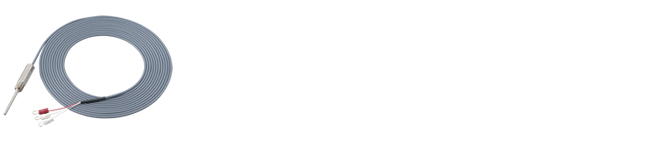

External temperature control sensor PCU-T005/PCU-T010
The chiller unit comes standard with an external temperature control input terminal.
It is possible to switch from normal circulating water control to temperature control of work-related parts.
