4-1. When there is a water path to the cooling object
This section explains how equipment located along the water path are cooled and gives examples of the target equipment.
When there is a water path to the cooling object, the contents are the simplest. Heat exchangers, jacket piping and other devices may be designed beforehand to be located in sections which require cooling in the equipment. The set temperature, flow rate, and discharge pressure of the cooling water are specified according to the equipment specifications. In rare cases, even the cooling capacity may be specified in the equipment specifications.

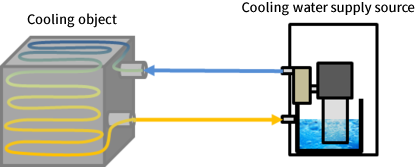

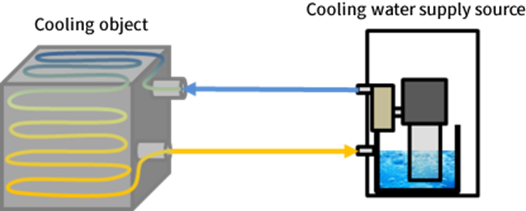

Under this pattern, cooling pipes are connected directly to the cooling object as shown in the diagram below to supply cooling water.
Example of applicable equipment
・Cooling of oscillator and coil of high frequency heat treatment equipment
・Cooling of the oscillator and torch of a welding machine
・Roll cooling of resin film, rubber, etc.
・Condensers of rotary evaporators and other distillation and fractional distillation equipment
・Cooling of molds in injection molding, die casting, etc.
・Cooling water of watertight vacuum pump
